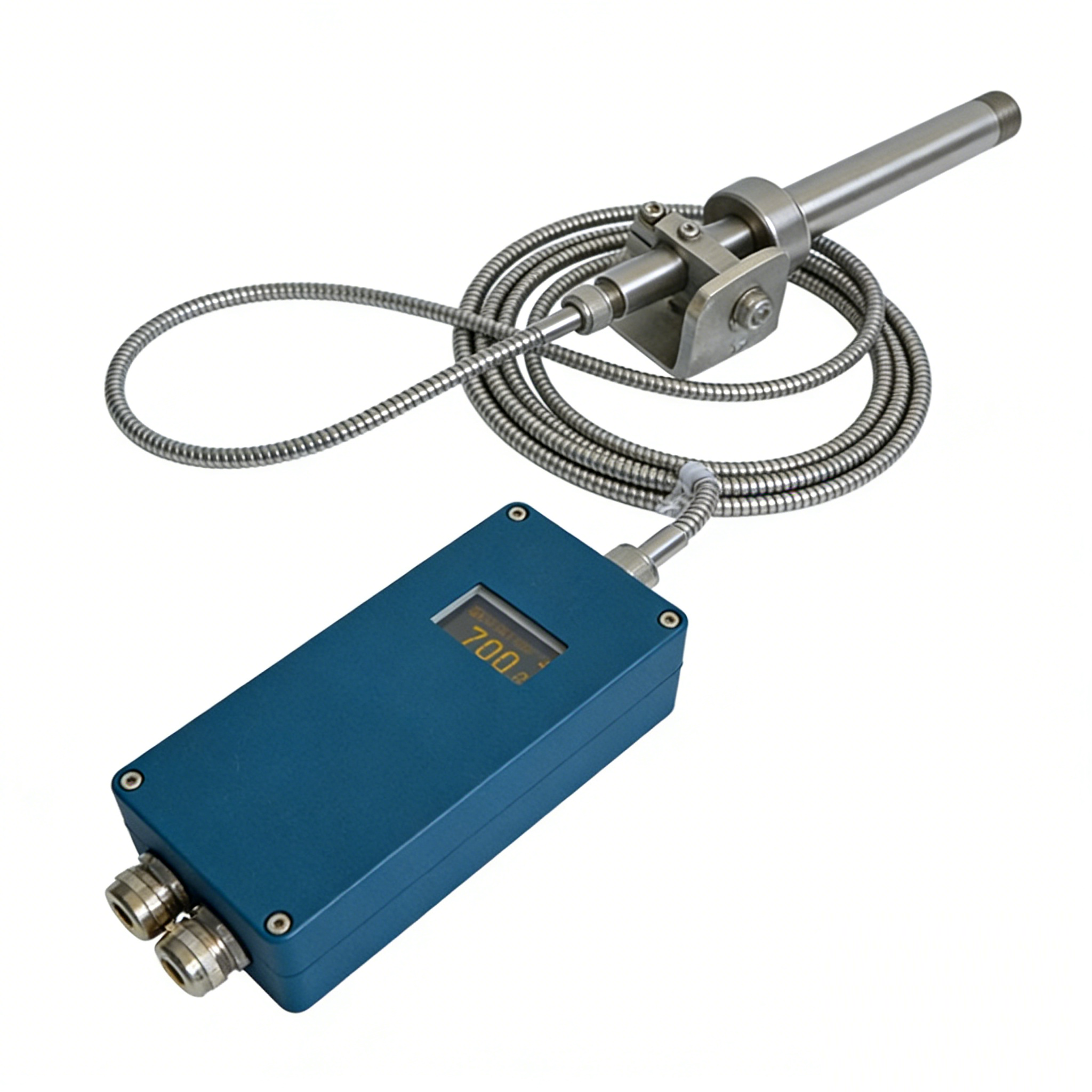

    Smart-F series two color infrared pyrometer is a series of high-performance, intelligent industrial infrared pyrometer. Compact optical fiber probe, especially suitable for small space or special installation requirements of the industrial site. Suitable for strong electromagnetic interference, high temperature, high pressure and other harsh environment temperature measurement.The fiber optic probe can be used for ambient temperatures up to 250 ° C, while the electronic box unit can be kept away from high temperature targets and harsh sites by fiber connection.With laser aiming function, easy to target under test. With process parameter adjustment button, easy temperature correction, suitable for different industrial sites.

    Fiber Infrared Thermometer table is mainly composed of optical lens, optical fiber, test instruments of three parts, through the lens is detected targets, within a certain distance to target objects radiation light focused to a smaller light spot and on the optical fiber head, so get a infrared energy) fiber, the optical fiber transmission to the testing instrument, instrument measuring front-end equipped with infrared transmission filter,The filter only allows infrared energy to be transmitted, other spectra are filtered out, and then infrared energy is converted into current signals by photoelectric conversion devices such as silicon photocells.The current signal can get the target temperature value after signal conditioning, data acquisition and data processing by the detecting instrument.

    This series Industrial Pyrometer uses manual adjustable focal length lens, using adjustable lens, ultra-wide focusing range, 0.15m to infinity adjustable.Using laser aiming, 1:1 clearly shows the position and size of the measured target.PID constant temperature control is adopted for the detector to eliminate the influence of ambient temperature on measurement, and it has dual color and monochromatic temperature measurement function.There are abundant peripheral interfaces: 2 independent analog output, 2 alarm output, 1 level output and 1 RS485 communication interface.These special designs enable the Smart-F series monochromatic pyrometer to meet a Wide Range of demanding industrial field and precise temperature control requirements.

    A two color pyrometer determines the temperature of an object by measuring the energy ratio of two different wavelengths.Advanced software and hardware design enable the Infrared Pyrometer to meet the detection target in the environment of water vapor, dust, target size changes, partial occlusion, emissivity changes, even if the detection signal attenuation of 95%, will not affect the temperature measurement results. Infrared energy is transmitted through optical fiber, which effectively improves the anti-electromagnetic interference ability of the product. A Fixed Pyrometer with fiber is especially suitable for use in strong electromagnetic field environment such as medium and high frequency induction heating equipment, with stable and reliable performance.Suitable for vacuum furnace, hot blast furnace continuous casting graphite furnace, plasma furnace, microwave heating furnace, induction heating furnace and other experimental furnace temperature measurement.

Features

Measuring range：700℃～2500℃
Detector：Si/Si（Laminated silicon）
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
