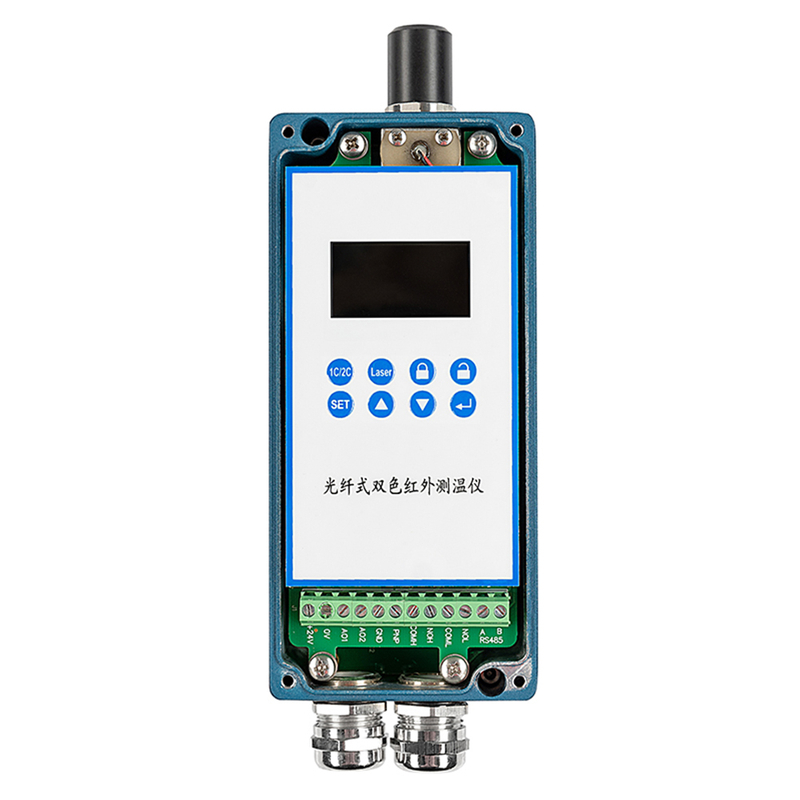

It consists of a lens, optical fiber and processing parts.The fiber can withstand temperatures up to 250 ° C and does not require additional cooling.Equipped with sturdy die-cast aluminum housing, stainless steel lens (with air blowing function). Optical fiber pyrometer can help you solve the temperature measurement problem in harsh environment.
The fiber optical infrared pyrometer has both monochromatic and dual-color temperature measurement modes, with a temperature measurement accuracy of 0.5%, a repetition accuracy of 2℃, a response time of 5ms, and a resolution of 0.1℃.7 core 0.2mm high quality quartz fiber, OLED large screen display interface, IP54 protection level.
It adopts adjustable focal lens, super focusing range wide, 0.15 m to infinity is adjustable, manual adjustable focal length lens, achromatic lens combination, high reliability circuit design (low temperature drift, design of full digital measurement, high integration SOC chip application interface, visualize, OLED) and software design (built-in temperature compensation and real-time signal processing, abnormal signal processing,Software code optimization for various application environments).PID constant temperature control is adopted for detector to eliminate the influence of ambient temperature on measurement.These special designs enable the Smart-F series monochromatic infrared pyrometer to meet a wide range of demanding industrial field and precise temperature control requirements.
A two color pyrometer determines the temperature of an object by measuring the energy ratio of two different wavelengths.Fast response, only 5 ms response time, 0.5% accuracy, 0.1℃ display resolution, suitable for fast metering tasks.The standard 0/4 to 20 mA linear output signal enables seamless integration into existing measurement and control systems.It can resist the interference of 2500VDC pulse group. It supports up to 26 thermometer bus cascade and realizes network control through PC.The advanced software and hardware design enables the industrial pyrometer to meet the application of humidity, dust, target size changes, local blockage, emissivity changes and other harsh environment, even if the detection signal attenuation of 95%, will not affect the temperature measurement results.In addition to suitable for general industrial temperature measurement, also suitable for installation in electromagnetic interference and high ambient temperature occasions.
Measuring range：700℃～1800℃
Detector：Si/Si（Laminated silicon）
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | FSR-7018 |
Measuring Range | 700℃～1800℃ |
Detector | Si |
2-color Wavelength | Wavelength1:（0.7～1.08）μm; Wavelength2: 1.08μm |
1-color Wavelength | 1.08μm |
Applications | High accuracy, highly stable two color infrared pyrometer,applied to metallurgical industry（rod and wire mills、Hot rolling mills）, foundry, cement kiln, induction heating, heat treatment, heating furnace, vacuum furnace, monocrystalline silicon, polysilicon, semiconductor and other industrial occasions with high ambient temperature or electromagnetic interference. |
Distance coefficients | 100：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
