Industrial Infrared Thermometer high Precision Temperature

Industrial Infrared Thermometer high Precision Temperature

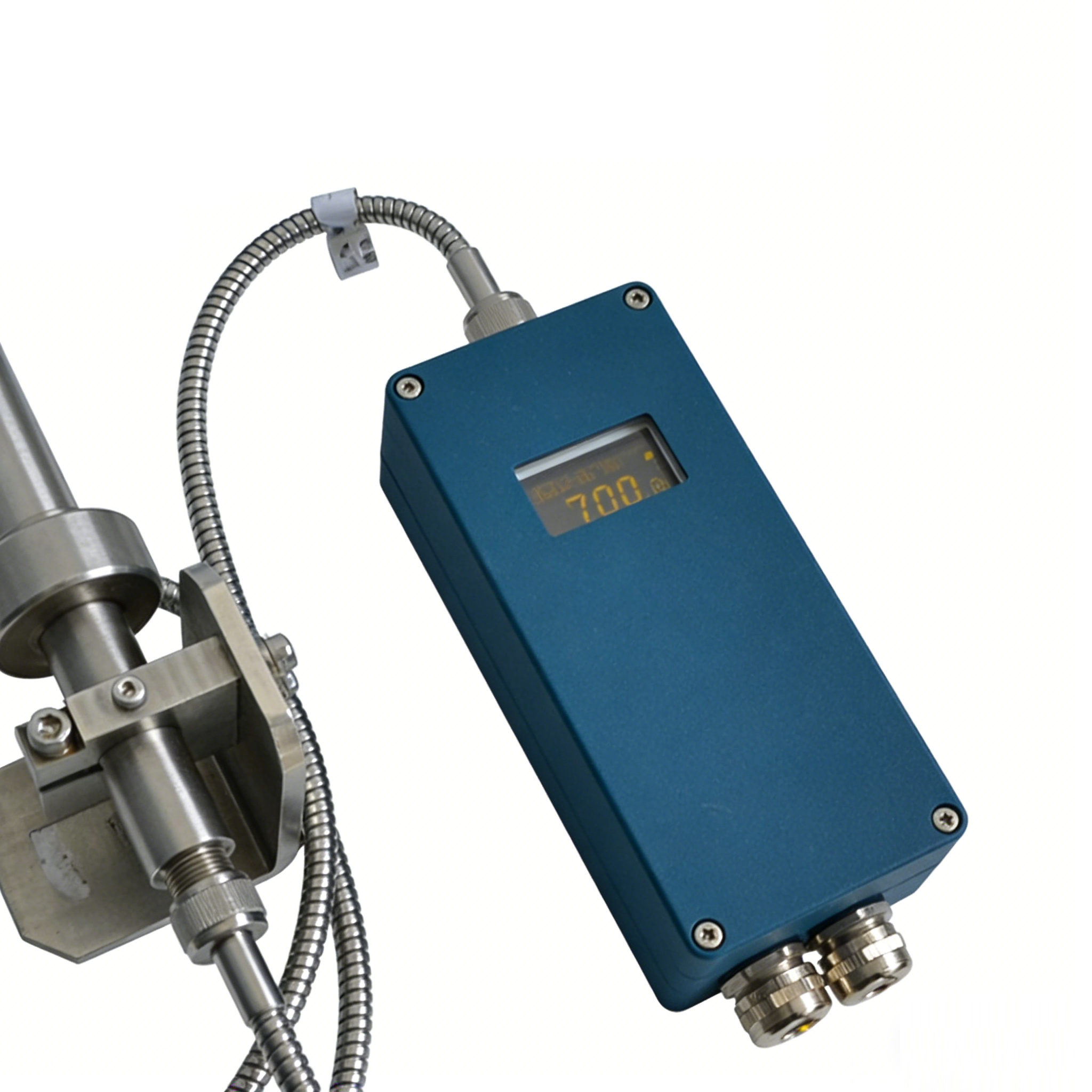

Sijie SMART-F series 1-color Infrared Pyrometer is a series of high performance and intelligent infrared pyrometer.

There are many advantages of Optical Fiber Infrared Pyrometer compared with ordinary integrated industrail infrared pyrometer, the main advantages are as follows:

1. Because the optical path system is separated from the circuit system, the optical path system of the thermometer can be installed in a high temperature environment (250 degrees can withstand the field environment) when applied in the industrial field, and can work steadily online for a long time. Since the optical path system contains no electricity at all, the installed industrial site is completely explosion-proof. The circuit part of the thermometer can be installed indoors or far away from the high temperature scene, connected by optical fiber and optical road part, so as to completely avoid the interference of the high temperature of the temperature measurement scene to the instrument temperature measurement.
2. Because the infrared signal of the Optical Fiber Pyrometer is transmitted to the sensor through the infrared fiber of special material, in this way, when the optical path is focused on the optical fiber, only the light spot size of the fiber section can be transmitted to the sensor through the optical fiber. In this way, the influence on the stability and service life of the sensor is avoided when the large area of light is directly focused on the sensor. And, the infrared fiber is made of special materials, you can only select the required infrared band through the fiber, so as to further weaken the light on the sensor baking. Therefore, the light infrared pyrometer has better stability and longer service life than the integrated infrared thermometer.

    SMART-F series one color pyrometer determine the temperature of an object by receiving the sum of the narrow-band radiation energy emitted by the object. It adopts advanced hardware and software design, has a super wide dynamic range, and has high stability.

    A 1-color infrared pyrometer can be widely used in metallurgical industry (wire rod, hot rolled plate,forging) and forging industry, heat treatment, induction heating, monocrystalline silicon and polycrystalline silicon,etc. SMART-F series is not only suitable for general industrial occasions of temperature measurement, but also suitable for installation in occasions with strong electromagnetic interference and high environmental temperature.

Features

Measuring range：300℃～1400℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s

Technical Parameters
