SMART-F series 1-color infrared pyrometer determine the temperature of an object by receiving the sum of the narrow-band radiation energy emitted by the object. This fixed pyrometer adopts advanced hardware and software design, has a super wide dynamic range, and has high stability.
Infrared thermometer is widely used in industry, the most used is mainly portable infrared thermometer and online infrared thermometer. At present, with the increasingly mature technology of optical fiber infrared pyrometer, and its advantages in the industrial scene are increasingly prominent, optical fiber infrared pyrometer has begun to slowly replace the integrated infrared pyrometer online temperature measurement, applied in various occasions in the industrial scene.

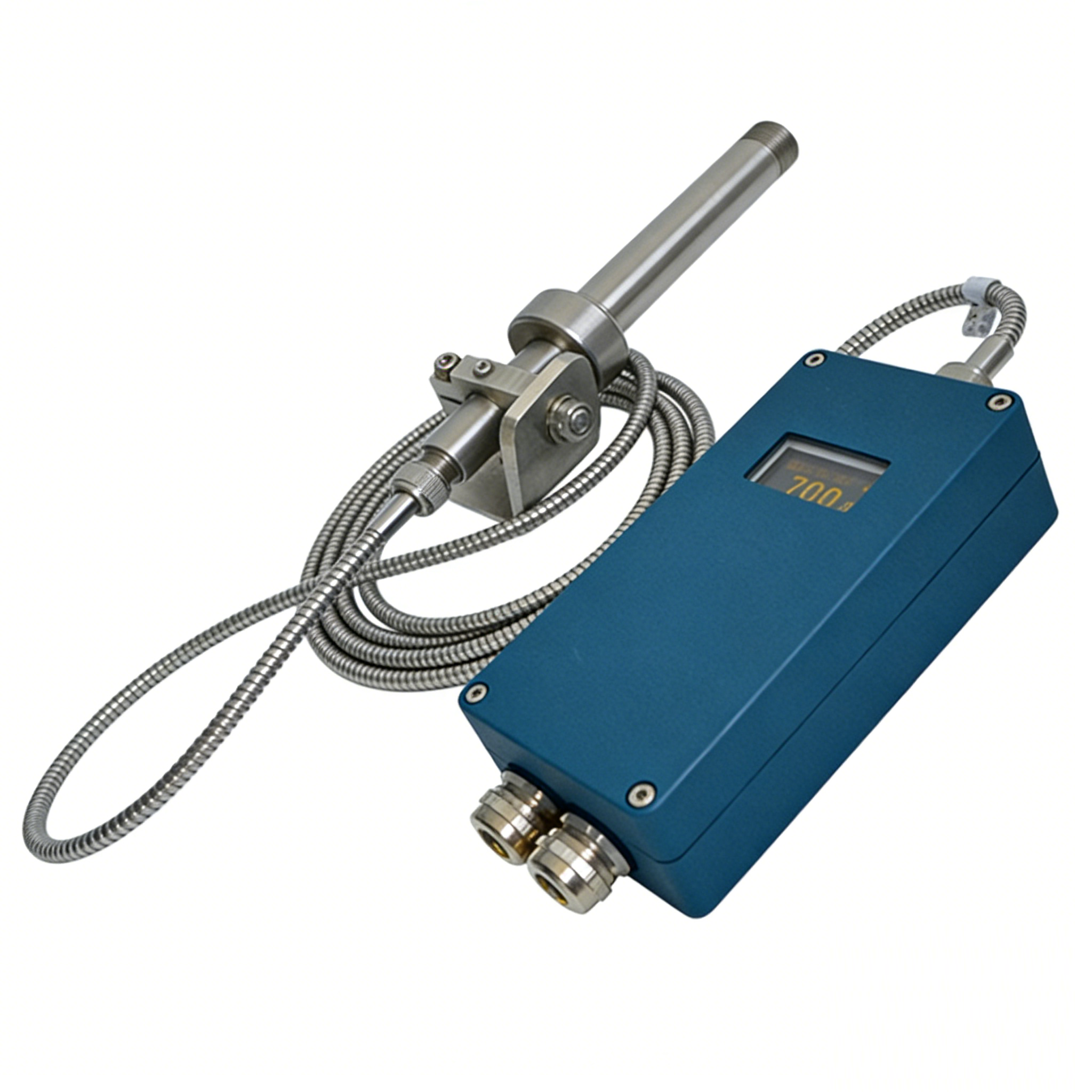

The main application market for optical fiber infrared thermometers is in the industrial field. Because one-piece infrared thermometer to use the environment requirement is very strict, usually to keep the instrument installation in environmental temperature is not more than 50 degrees Celsius, otherwise will be caused by circuit component is affected by temperature measurement distortion, even equipment damage, so commonly used in industrial site online one-piece industrial infrared pyrometer are equipped with water-cooled cooling protection measures, such as installation of trouble, The cost of use is also high. The optical fiber infrared thermometer uses a split design, the basic temperature is not affected by the optical path system (that is, the optical probe) installed in the temperature measurement site; However, the signal processing/display which is more demanding to the environment temperature can be installed far away from the temperature measurement site to ensure that the signal processing/display always works normally. Through an infrared fiber, the infrared signal received by the optical probe is transmitted to the signal processor for processing. In this way, the instrument has long-term stability and reliability, and easy to install, no cooling measures such as water cooling, low cost, equipment maintenance is also convenient.
Measuring range：700℃～3000℃
Detector：Si
Distance coefficients：200：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | FS7030 |
Measuring Range | 700℃～3000℃ |
Detector | Si |
Wavelength | （0.85～1.1）μm |
Applications | High accuracy, highly stable One color Infrared Pyrometer,applied to induction heating, heat treatment, monocrystalline silicon furnace, polysilicon furnace, vacuum furnace, melting glass, forging and other industrial temperature measurement. |
Distance coefficients | 200：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
