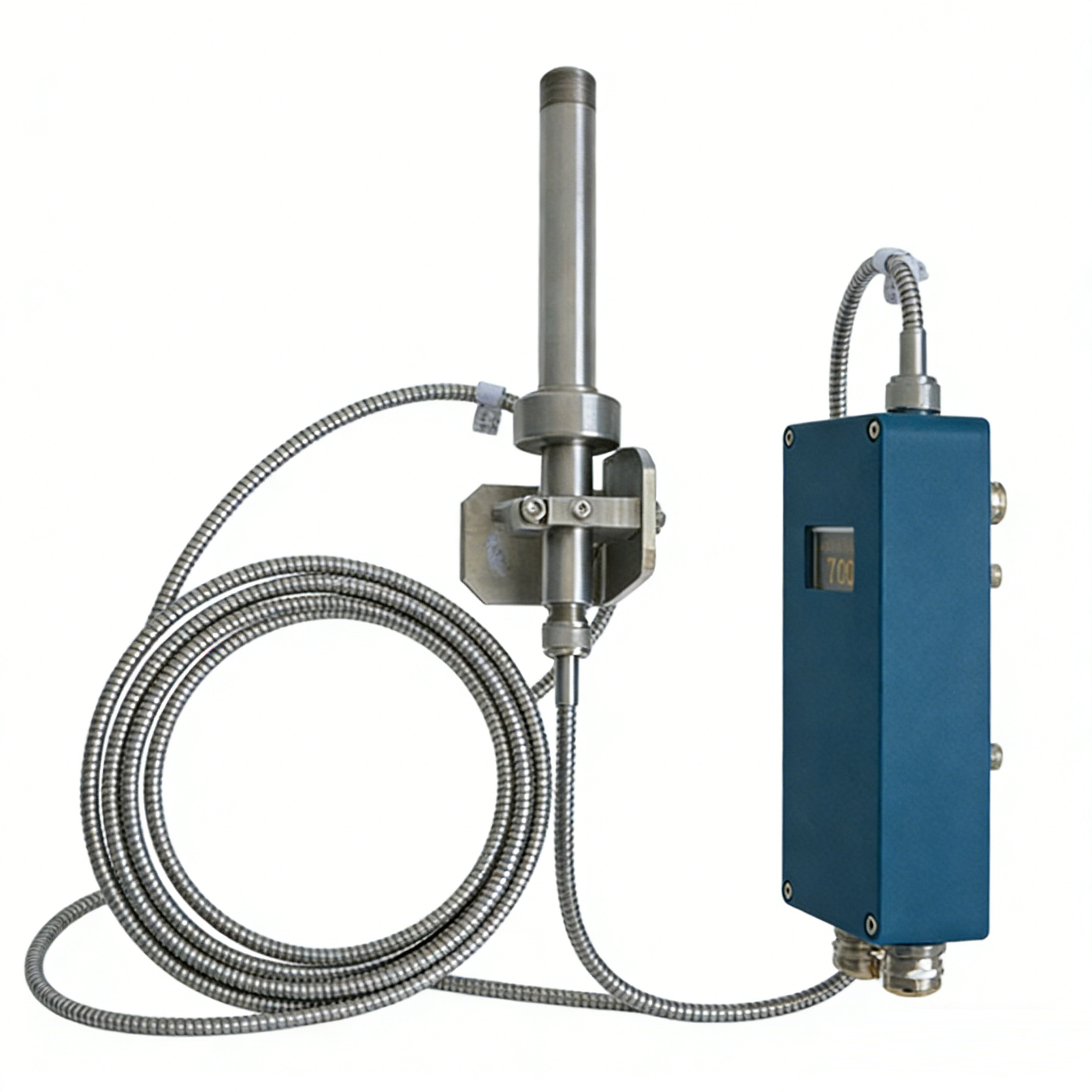

Pyrometer instrument used for industry

Pyrometer instrument used for industry

    The environmental conditions of the Infrared Thermometer have a great influence on the measurement results, which should be considered and properly solved, otherwise it will affect the temperature measurement accuracy and even cause damage.When Infrared Pyrometer  is placed in a high ambient temperature, dust, smoke and steam conditions, you can choose the manufacturer's protective sleeve, water cooling, air cooling system, air purifier and other accessories.These accessories effectively solve the environmental impact and protect the Optical Fiber Pyrometer to achieve accurate temperature measurement. When determining accessories for Fiber One Color Pyrometer standardized services should be required as far as possible to reduce installation costs Optical Fiber 1-color Pyrometer is the best choice when smoke, dust, or other particles reduce the measured energy signal under noisy, electromagnetic, vibration, or inaccessible environmental conditions, or other harsh conditions.In noise, electromagnetic field, vibration and difficult to access environmental conditions, or other harsh conditions, it is appropriate to choose the fiber optical pyrometer. In sealed or hazardous material applications (such as containers or empty containers), Fiber Optical Infrared Pyrometer can observe through windows.The material must be strong enough and allow operating wavelength range pass through.

      In the application of indsutrial pyrometer in low temperature measurement, Ge or Si material is usually used as the window, which is opaque to visible light and the human eye cannot observe the target through the window. If the operator needs to observe target through the window, it should use materials with both radiolucent and visible light transmittance, such as ZnSe or BaF2, as the window material. When flammable gas exists in the working environment of the Accuracy Pyrometer, the safe 1C Pyrometer  can be used to measure and monitor the safety in the environment of a certain concentration of flammable gas. In the case of harsh and complex environmental conditions, you can choose a separate temperature head and display system for easy installation and configuration.

   By through an infrared optical fiber, fiber one color pyrometer receives the infrared signal by the optical probe is transmitted to the signal processor for processing, temperature measurement, has good consistency and stability, high measurement accuracy.Fiber optic temperature sensor is intrinsically safe, free from electromagnetic interference, remote monitoring, high precision and sensitivity, high pressure resistance, corrosion resistance, can work in harsh environment and low cost.Optical fiber temperature sensor can be applied to the on-line temperature monitoring of high-voltage transmission line connectors and switchgear contacts in power stations and large petroleum and petrochemical enterprises.Can meet the needs of large enterprises safety production management, low-cost and cost-effective safety monitoring and monitoring system.

Features

Measuring range：300℃～1400℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s

Technical Parameters
