It has strong casing, use stainless steel lens(with air purge functions), die cast aluminum housing, protection grade is IP54.
It use the manual adjustable focal lens, achromatic lens combination, high reliability circuit design (low temperature drift, fully digital measurement design, high integration SOC chip application, visualization OLED operation interface) and software design (ambient temperature compensation, real-time signal processing, abnormal signal processing, software code optimization in all kinds of application environment).These special designs enable SMART-F series one-color pyrometer to meet the use in a variety of harsh industrial sites and precise temperature control requirements.
SMART-F series one-color pyrometer determine the temperature of an object by receiving the sum of the narrow-band radiation energy emitted by the object. It adopts advanced hardware and software design, has a super wide dynamic range, and has high stability.

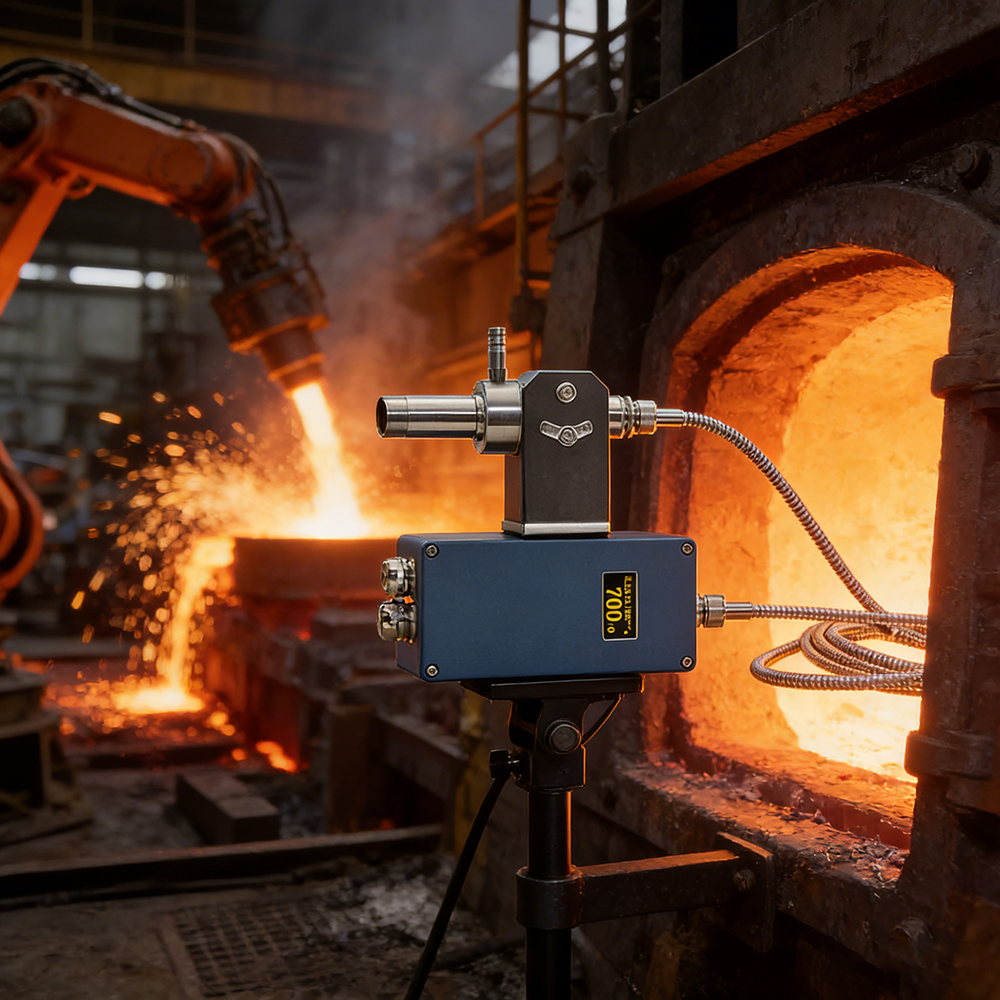

It can be widely used in metallurgical industry (wire rod, hot rolled plate,forging) and forging industry, heat treatment, induction heating, monocrystalline silicon and polycrystalline silicon,etc. SMART-F series is not only suitable for general industrial occasions of temperature measurement, but also suitable for installation in occasions with strong electromagnetic interference and high environmental temperature.
Measuring range：700℃～2500℃
Detector：Si
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | FS-7025 |
Measuring Range | 700℃～2500℃ |
Detector | Si |
Wavelength | （0.7～1.08）μm |
Applications | High accuracy, highly stable One color Infrared Pyrometer,applied to induction heating, heat treatment, monocrystalline silicon furnace, polysilicon furnace, vacuum furnace, melting glass, forging and other industrial temperature measurement. |
Distance coefficients | 100：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |

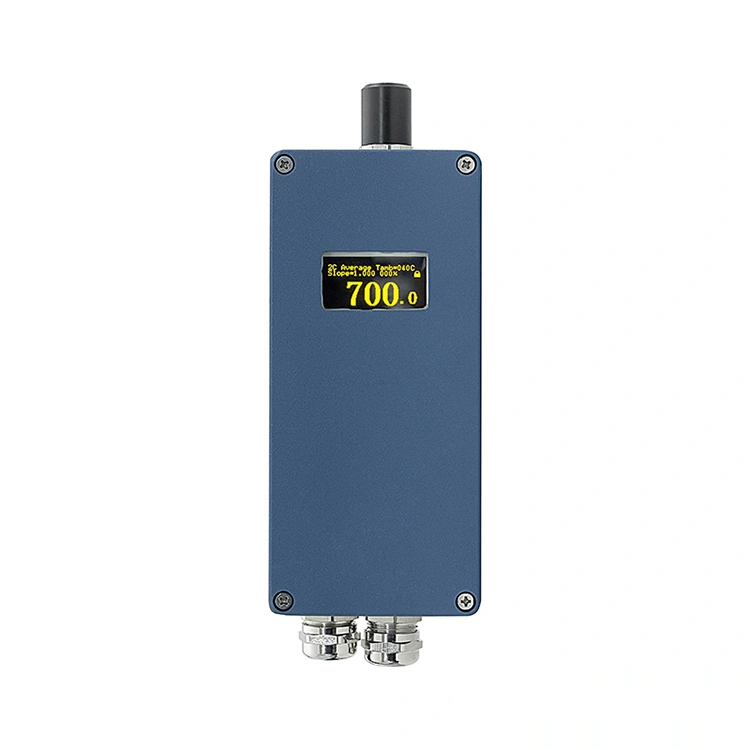

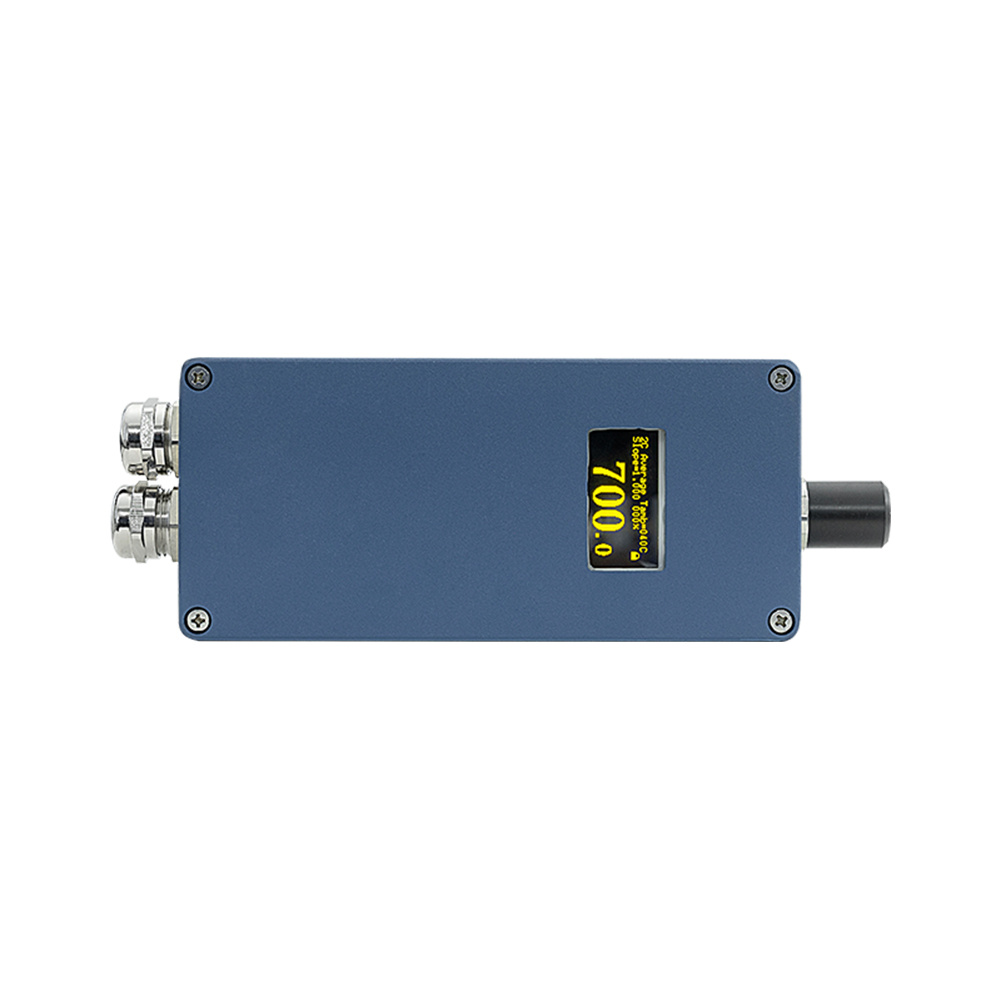

Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
