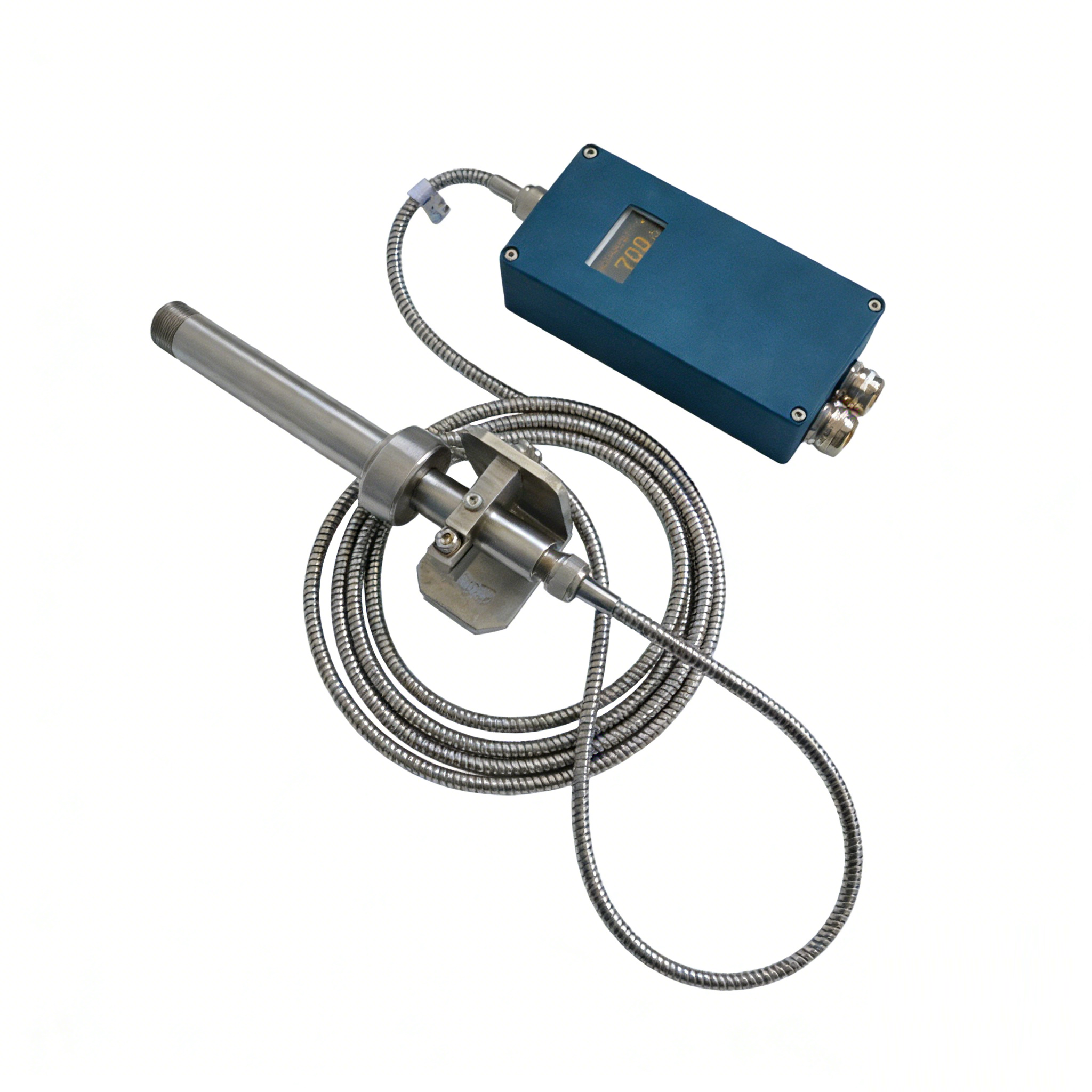

It consists of lens, optical fiber and processing components.The optical fiber and lens assembly can withstand temperatures up to 250 ° C without additional cooling.In addition to suitable for general industrial temperature measurement, also suitable for installation in electromagnetic interference and high ambient temperature occasions.Software and hardware design, suitable for one million times of signal processing, can meet the user of the instrument precision, repeatability, and other aspects of the requirements.
Fiber optic monochromatic pyrometer is a highly accurate digital fiber optic industrial infrared pyrometer designed for applications under harsh conditions.The correct temperature measurement can be performed in areas with high ambient temperatures or in environments where cooling protection cannot be installed or where there is strong electromagnetic interference in the temperature measurement area.The monochromatic infrared pyrometer has a temperature measurement accuracy of 0.5%, a repetition accuracy of 2℃, a response time of 5ms, and a resolution of 0.1℃.The 1C Pyrometer adopts adjustable focus lens and laser aiming indication to clearly display the position and size of the measured target.The one color pyrometer uses industrial grade OLED screen as the display interface, friendly man-machine interface.
Fiber Optical Infrared Pyrometer is widely used in induction heating, sintering, casting, rotary pit, annealing, steel rolling, welding, casting, forging and so on.Smart-f series infrared thermometer are not only suitable for general industrial temperature measurement occasions, but also suitable for electromagnetic interference, high ambient temperature occasions installation.
Measuring range：600℃～1600℃
Detector：Si
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | FS-6016 |
Measuring Range | 600℃～1600℃ |
Detector | Si |
Wavelength | (0.85～1.1）μm |
Applications | High accuracy, highly stable One color Infrared Pyrometer,applied to induction heating, heat treatment, monocrystalline silicon furnace, polysilicon furnace, vacuum furnace, melting glass, forging and other industrial temperature measurement. |
Distance coefficients | 100：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
