User-friendly high accuracy infrared pyrometer
The pyrometer is very strong because of 304 stainless steel.Meticulous circuit design and intelligent software design make the thermometer simple to operate, easy to install and use, high reliability of anti-interference, meet requirements of various harsh industrial sites and precise temperature control.
Features
Measuring range：700℃～3000℃
Detector：Si/Si（Laminated silicon）
Distance coefficients：200:1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Adjustable focus len

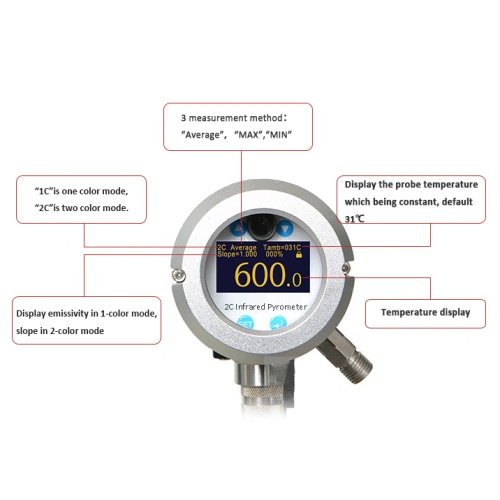

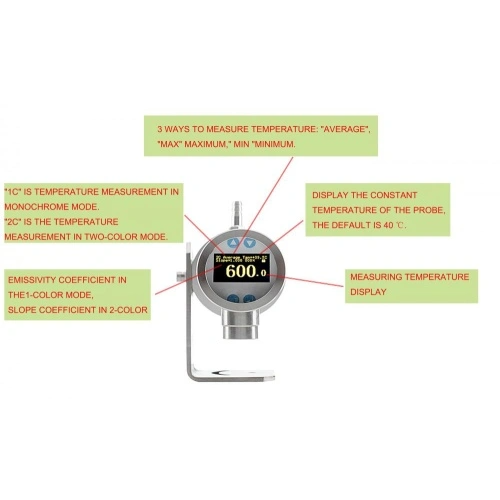

Industrial-grade self-luminous OLED display screen
LED light aiming/Eyepiece aiming
Working with the stainless steel jacket
When the temperature is higher than 50 °C, you can choose a stainless steel jacket out of the high-temperature 2-color ratio pyrometer for water cooling to prevent damage to internal components caused by excessive temperature.
1. Cooling function
Water cooling function to prevent excessive temperature damage to internal components, protect the movement.
2.Scavenging function
Effectively prevent dust, extend time of the later cleaning and maintenance to more than 6 months, avoid many times wiping the optical lens resulting in lens wear.
Technical Parameters
Model
| STRONG-SR-7030 2-color infrared pyrometer
|
Measuring Range
| 700℃～2500℃
|
Detector
| Si/Si
|
One-color mode Wavelength
| 1.08μm
|
Two-color mode Wavelength
| Wavelength1：（0.7～1.08）μm Wavelength 2：1.08μm |
Applications
| High-temperature furnace,graphite furnace,vacuum furnace,semiconductor furnace |
Distance coefficients
| 200：1
|
Focal length
| Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy
| ±0.5%T℃（T is measured temperature）
|
Resolution
| 0.1℃
|
Repeat Accuracy
| ±2℃
|
One-color mode: Calibration coefficient
| 0.100～1.000, Adjustable in 0.001 increments
|
Two-color mode: Calibration coefficient
| 0.850～1.150, Adjustable in 0.001 increments
|
Response time
| Fasted: 5ms，adjustable in 5ms-99.99s
|
Display mode
| Industrial-grade self-luminous OLED display screen
|
Aiming method
| Visual green spot (default) or eyepiece aiming, alternative
|
IP Rating
| IP65
|
Applications
Forge, quenching,heat treating, steel, metallurgy,machinery,kiln,ion plating, wire rod, charking,hot pressing,semiconductor, composition, graphite, coal, glass, chemical industry, metal,etc.

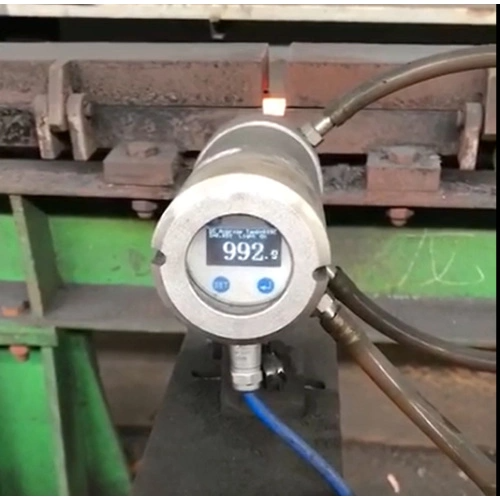

Application projects
photovoltaic industry
STRONG-SR Series Two Color Pyrometers
Model | STRONG-SR-6016 | STRONG-SR-6018 | STRONG-SR-7025 | STRONG-SR-7030 |
Measuring Range | 600℃～1600℃ | 600℃～1800℃ | 700℃～2500℃ | 700℃～3000℃ |
1112℉～2912℉ | 1112℉～3272℉ | 1292℉～4532℉ | 1292℉～5432℉ |
Detector | Si/Si（Laminated Silicon） |
1-color Wavelength | 1.08μm |
2-color Wavelength | Wavelength1：（0.7～1.08）μm；Wavelength2：1.08μm |
Main Applications | Hot rolled steel, wire rod, metal forging, casting, induction heating, melting glass, cement kiln, semiconductor, vacuum furnace, polysilicon, monocrystal silicon | High-temperature furnace, graphite furnace, vacuum furnace, semiconductor furnace |
Distance Coefficient | 60：1 | Standard 100：1，60：1 customized | 200：1 |
Measuring Distance | Standard focal length：adjustable from 0.35m to infinite；near focal length：0.2m～0.5m |
Measuring Accuracy | ±0.5%T（T is measured value） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
1-color Coefficient | 0.100～1.100，adjustable in 0.001 increment |
2-color Coefficient | 0.850～1.150，adjustable in 0.001 increment |
Response Time | Fastest 5ms，5ms-99.99s adjustable |
Signal processing | Peak value, valley value, average temperature value; Ambient temperature too high/low alarm; switch between one-color and two-color mode; power down protection. |
Output | 0.100～1.100，adjustable in 0.001 increment |
Group1: Multiple analog outputs 16bit（4mA～20mA, 0mA～20mA, 0V～5V, 0V～10V optional), output resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω，maximum current output load 10mA |
Group2: Analog outputs 4mA～20mA, resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω |
Alarms output: upper or lower temperature limit alarm；PhotoMOS relay (infinite service life) on resistance≤2Ω, maximum allowed voltage: AC42V or DC60V; maximum allowed current: 120mA; response time: 2ms |
PNP level output（current output 100mA，with overload protection.） |
Display Mode | Industrial-grade self-luminous OLED display screen |
Power Input | DC（20～30）V，with over voltage, over current and short circuit protection; Power consumption： 5W（24V@200mA）with built-in EMI wave filter, resistance to pulse group’s Interference: 2500VDC |
Warm up time | With built-in 40℃ constant temperature heater, start temperature measurement within 10mins after power on. Assembled whole-process temperature compensation, temperature measurement accuracy is nearly unaffected by ambient temperature. |
Aiming Method | Green visible aiming laser or eyepiece, choose 1 |
Port | Imported sealed plug and 12-core high-temperature shielded cable |
Operating Environment | No water cooling：-30℃～+65℃，air purge pressure: 0.1MPa，flow rate: 6L/ min With water cooling：-30℃～+120℃，water cooling pressure: 0.2MPa，flow rate: 2L/min |
Protection Level | IP65 |
