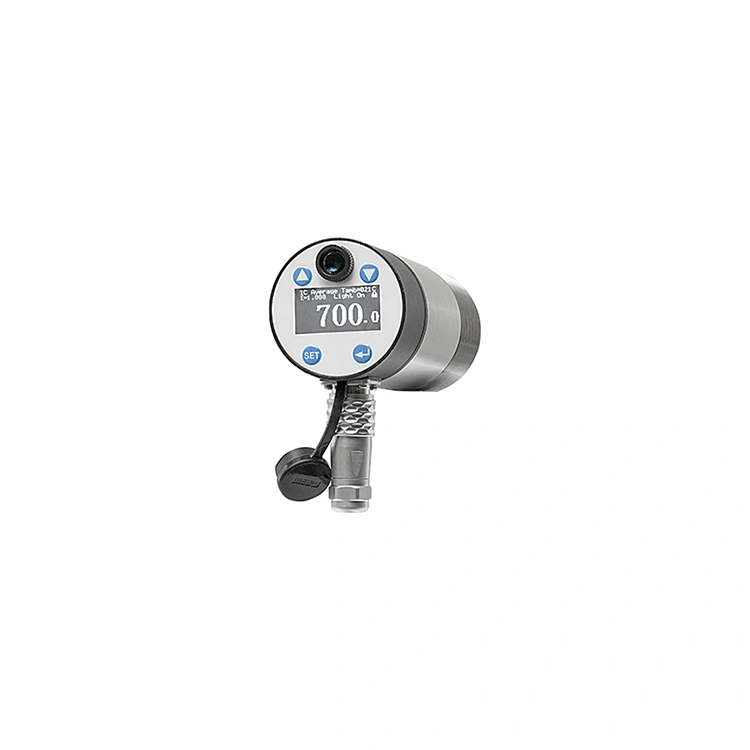

Software and hardware design, suitable for one million times of signal processing, can meet the user of the instrument precision, repeatability, and other aspects of the requirements. Sijie industrial infrared pyrometer has a temperature measurement accuracy of 0.5%, a repetition accuracy of 2℃, a response time of 5ms, and a resolution of 0.1℃.The monochromatic infrared pyrometer adopts adjustable focus lens, high brightness green LED light source or visual eyepiece aiming, and clearly displays the position and size of the measured target. This type fixed pyrometer has industrial grade OLED screen for display interface, friendly man-machine interface. Our accuracy pyrometer has abundant peripheral interfaces: 1 programmable analog output, 1 alarm output, and 1 RS485 communication interface.
Wide temperature measuring range: temperature range of Sijie photoelectric products is 200~3000 degrees (segmented). Each type of one color infrared pyrometer has its specific temperature range. The temperature range of the selected instrument should match the temperature range of the specific application.
Target size: When measuring temperature, the measured target should be larger than the field of view of the 1C Pyrometer, otherwise there will be measurement error. It is recommended that the size of the object to be measured exceed 50% of the field of view of the fixed infrared pyrometer.Optical resolution (D:S): that is, the ratio of the thermometer probe to the target diameter. If the monochromatic pyrometer is far away from the target and the target is small, choose a high resolution temperature measurment infrared pyrometer.
Application cases of low-temperature 1-Color Pyrometer include: semiconductor, metal forging, molten metal, non-ferrous metal and non-oxidized metal, galvanized line and steel annealing, rolling mill, wire coating and annealing, laser welding, plastic pipe extrusion, vacuum furnace, industrial furnace, high temperature sintering furnace and other industrial temperature measurement.
Measuring range：600℃～2200℃
Detector：Si
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
| Model | MARS-S-6022 |
| Measuring Range | 600℃～2200℃ |
| Detector | Si |
| Wavelength | (0.85～1.1) μm |
| Applications | High accuracy and High cost performance monochrome pyrometer applied to temperature measurement in the various industries.such as: inductioin heating,heat treatment,single crystal furnace,Polycrystalline furnace,Vacuum furnace,high temperature glass,metallugical forging ,also suitable for temperature measurement in a good environment. |
| Distance coefficients | 100：1 |
| Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
| Accuracy | ±0.5%T℃（T is measured temperature） |
| Resolution | 0.1℃ |
| Repeat Accuracy | ±2℃ |
| Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
| Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
| Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
| Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
| IP Rating | IP65 |
