MARS-G-1508
| Availability: | |
|---|---|
| Quantity: | |

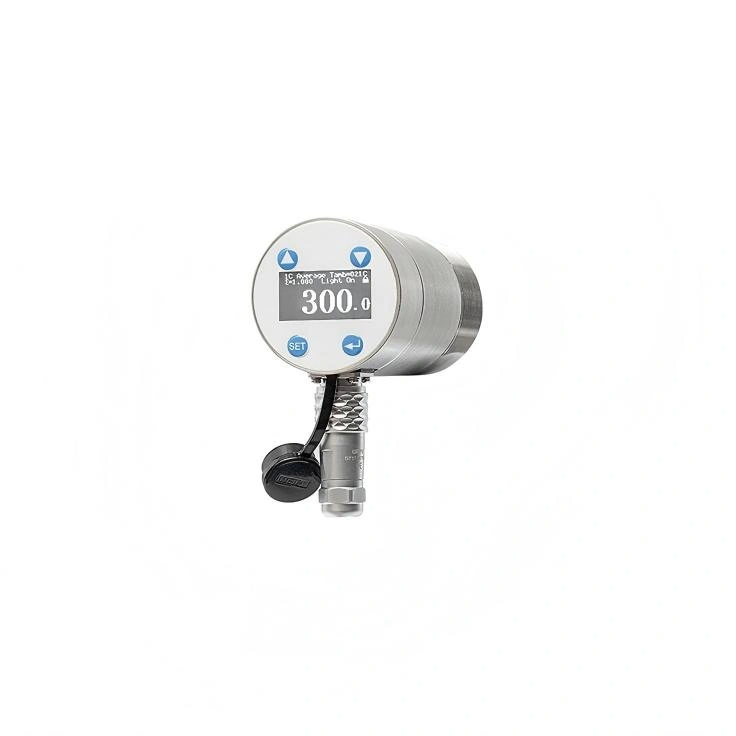

The low-temperature 1-color pyrometer is a sophisticated non-contact temperature measurement device designed to provide precise readings across a wide range of applications.
MARS-G-1508 infrared pyrometer technical parameters
Model | MARS-G-1508 |
Measuring Range | 150℃～800℃ |
Detector | InGaAs( Indium gallium arsenic) |
1-color Wavelength | ( 1.45 ~2.1) μm |
Main Applications | Heat treatment, Galvanized wire, Nonferrous metal processing, annealing furnace |
Distance Coefficient | 100:1 |
Measuring Distance | Standard focal length：adjustable from 0.35m to infinite, near focal length：0.15m～0.5m |
Measuring Accuracy | ±0.5%T（T is measured value） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
1-color Coefficient | 0.100～1.000，adjustable in 0.001 increment |
Response Time | Fastest 5ms, 5ms-99.99s adjustable |
Signal processing | Peak value, valley value, average temperature value; Ambient temperature too high/low alarm; power down protection; and others function etc. |
Output | Multiple analog outputs 16bit（4mA～20mA, 0mA～20mA, 0V～5V, 0V～10V optional), output resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω，maximum current output load 10mA |
Alarm output：Upper limit、Lower limit alarm，with photocouple relay has unlimited service life， On resistance≤ 1Ω ，maximum allowed voltage: AC42V or DC60V ，Maximum allowed current:100mA ，Response time: 2ms | |
RS4 85 output ，capable parameter modification, data recording and query function | |
Display Mode | With self- illumination industrial gread OLED display screen |
Power Supply | DC (20 ~30) V, power consumption：5W (24V@200mA) , With over voltage, over current, short circuit protection, With Built-in EMI filter, can resist 2500VDCpalus group interferance. |
Ambient temperature compensation | Built- in ambient temperature compensation, almost unaffected by ambient temperature changes. |
Aiming Method | Built- in visible high brightness green light or eyepiece aiming |
Interface | With fully sealed plug |
Operating Environment | without water cooling: -20℃ ~+60℃ with water cooling: -20℃ ~+200℃ |
Protection Level | IP65 |
