Contactless laser infrared pyrometer OLED screen 200-1100℃

use:
Accuracy:
temperature range:
Share:
  • Product Description
Overview
Product Attributes

Model No.MARS-G-2011

Support CustomizationOem, Odm, Obm

Place Of OriginChina

Warranty Period1 Year

Supply Ability & Additional Information

Packagingcarton/wooden case

TransportationOcean,Air,Land,Express,Others

PortShanghai Port,Ningbo Port

Payment TypeL/C,T/T

IncotermFOB,CIF,EXW,CFR,FCA

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
carton/wooden case

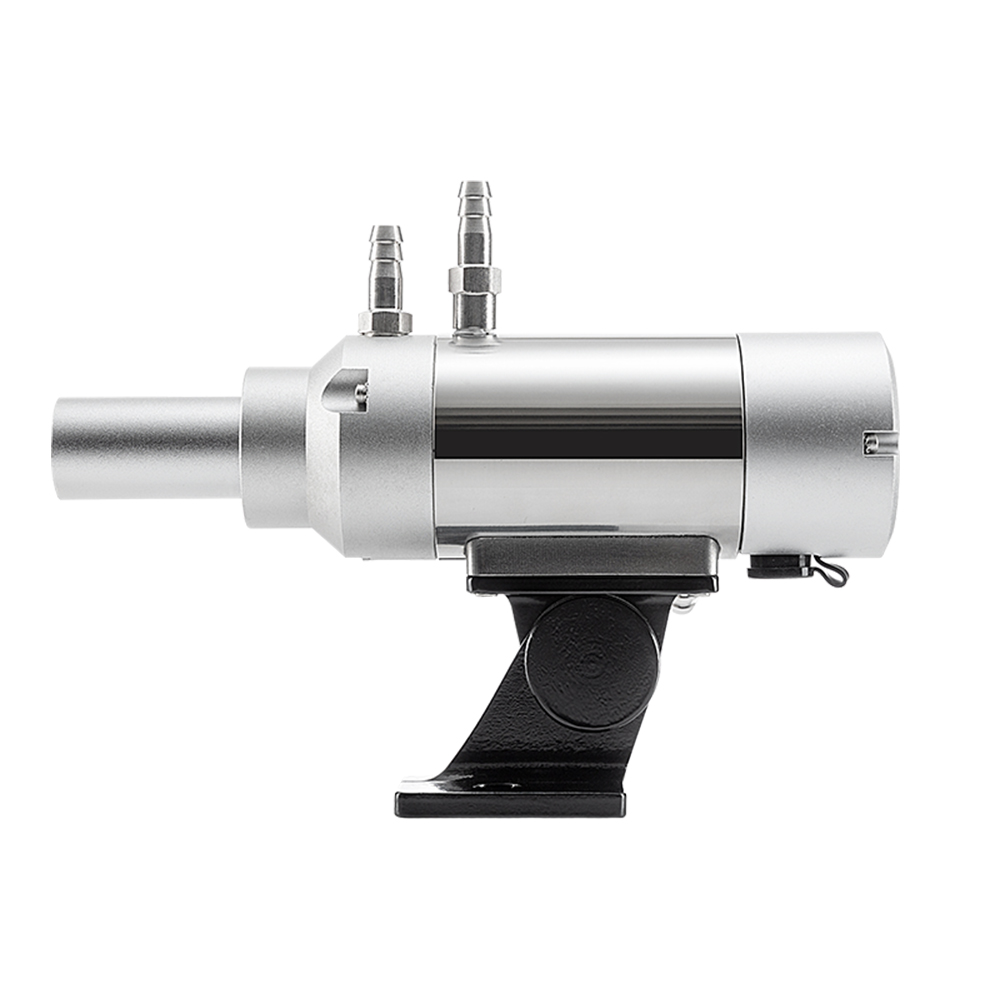

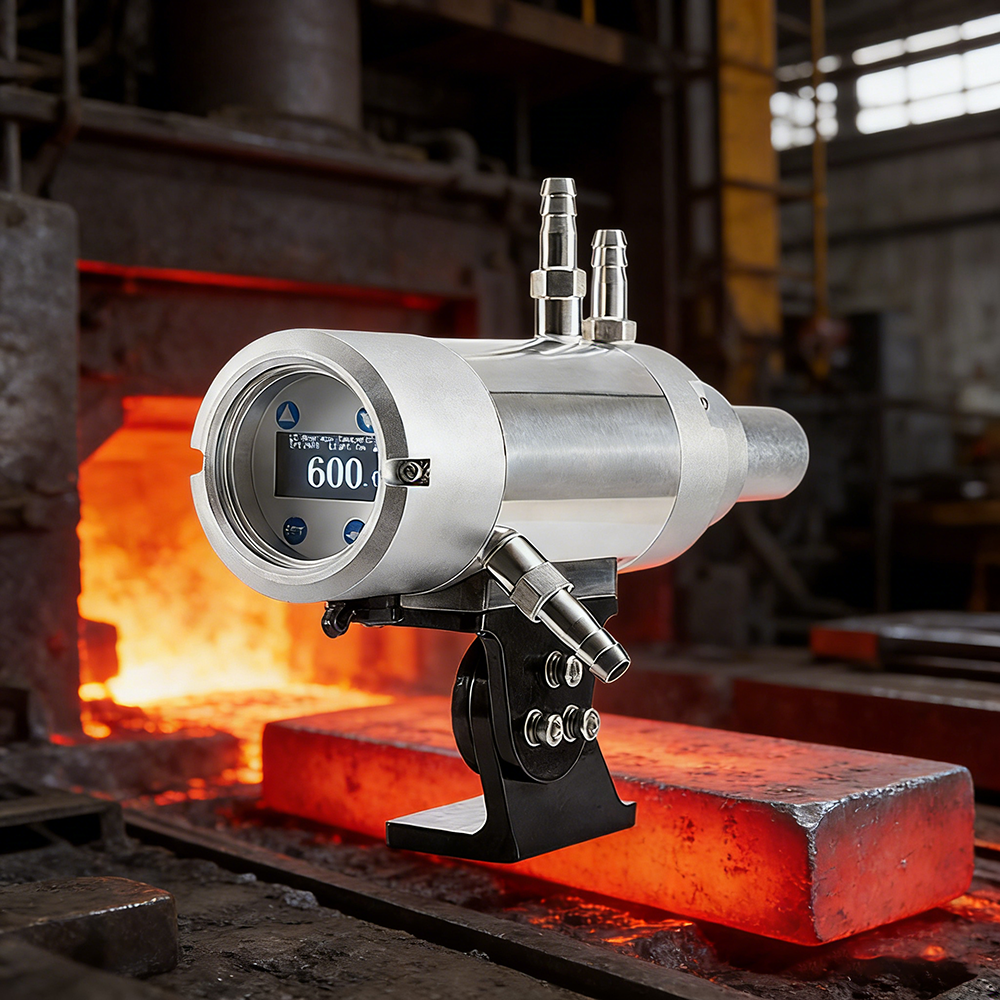

Contactless laser Infrared Pyrometer OLED screen 200-1100℃

MARS series Fixed Pyrometer  is a series of rugged, accurate Infrared Thermometer which is designed for an extensive range  of industrial process temperatures. They are easy to install, flexible to use, Mars series makes it simple to customise the perfect measurement to user's application. This series of high-performance, intelligent Industrial Pyrometer has compact structure and powerful functions. Our industrial infrared pyrometer use the manual adjustable focal lens, achromatic lens, high reliability circuit design interface and software design

MARS-G-2011 is belong to MARS series Low-temperature 1-color Pyrometer, also know as monochromatic pyrometer, it measure the temperature of an object by receiving the sum of the energy it emits in a narrow band. Compared to 2-color Pyrometer, 1-color pyrometer is more suitable for site with good condition, with less dust, oil and vapour.

Flexible to use, easy to operate, MARS-G-2011 1-color infrared pyrometer can be widely used in high-temperature applications in industries including glass, industrial processing and steel, such as forging industry, heat treatment, induction heating, vacuum furnace, high temperature furnace, monocrystalline silicon, polycrystalline silicon and other industrial temperature measurement.


Features

Measuring range:200℃~1100℃
Detector:Expand type InGaAs
Distance coefficients:100:1
Measuring Distance:Standard Focus length:0.35m adjustable to infinity,Near focus distance:0.2m~0.5m
Accuracy:±0.5%T℃(T is measured temperature)
Resolution:0.1℃
Repeat Accuracy:±2℃
Response time:Fasted 5ms, adjustable in 5ms-99.99s


Technical Parameters

Model  MARS-G-2011
Measuring Range
200℃~1100℃
Detector
Expand type InGaAs
Wavelength
(1.45~2.1) μm
Applications

High accuracy and  High cost performance monochrome pyrometer applied to temperature measurement in the various industries.such as: inductioin heating,heat treatment,single crystal furnace,Polycrystalline furnace,Vacuum furnace,high temperature glass,also suitable for temperature measurement in a good environment.

Distance coefficients 100:1
Focal length

Standard0.35m adjustable to infinity

Near focus distance0.2m0.5m

Accuracy
±0.5%T℃T is measured temperature
Resolution
0.1℃
Repeat Accuracy
±2℃
Calibration coefficient
0.1001.000Adjustable in 0.001 increments
Response time
Fasted: 5msadjustable in 5ms-99.99s
Display mode
Industrial-grade self-luminous OLED display screen (default) or visual  eyepiece aiming
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65

 Temperature Measurement Device


Temperature Measuring Instruments



Product Categories : Low Temperature Infrared Pyrometer > Low-temperature 1-color Pyrometer

Company Overview
Changzhou Sijie Optoelectronics Technology Co., Ltd. is a high technology enterprise integrating R&D, manufacture, sale and after-sale service, our main products include non-contact infrared pyrometer, infrared gas analog instrument, industrial automation detector, etc.Sijie optoelectronics holds multiple self-intellectual property rights, related to infrared measurement core technology, based on decades of researching and development accumulation. we are continuous providing products with stable and reliable quality. Which benefit from Implement strict and comprehensive quality control based on product design, parts selection, supplier selection, product assembly, finished product inspection, after-sales service as well as strong technical force, mature production process, advanced experimental equipment, complete production facilities.Our company's main products are STRONG-series dual-color pyrometer, monochrome pyrometer, SMART-series fiber optic dual-color pyrometer, monochrome pyrometer, MARS-series monochrome pyrometer. Products are widely used in metallurgy, heat treatment, chemical, power, photovoltaic, cement, glass, refractory, crystal material production and other industries, well received by our end-users.Adhering to the business philosophy of "improving quality by innovation and creating value for customers", Sijie optoelectronics focuses on the field of infrared photoelectricity measurement and will wholeheartedly provide customers with high-quality products and professional services.
