Probe Pocket Size LCD Digital Thermometer
Sealing parts are made of high temperature resistant rubber, protection grade IP65, suitable for industrial occasions.The temperature range of the infrared thermometer covers -40℃ ~ 3300℃, the temperature measurement accuracy can reach 0.5%, the repetition accuracy is 2℃, and the temperature resolution is 0.1℃.The fastest response time of the infrared pyrometer is adjustable from 5ms to 99.99s.
It adopts an adjustable focusing lens. The measuring distance is 0.35m to infinity.The detector adopts ambient temperature compensation to eliminate the influence of ambient temperature on the measured temperature.Industrial grade OLED screen for display interface, user-friendly interface.Rich peripherals: programmable analog output, alarm output, RS485 output.Hardware and software watchdog, hardware EMI filter design to improve the stability of the system.It can resist the interference of 2500VDC pulse group. It supports up to 26 1-color pyrometer bus cascade and realizes network control through PC.
The advantages of temperature measurment infrared pyrometer, non-contact measurement, it does not touch the surface of the temperature field to be measured, therefore, it is not easy to affect the temperature field to be measured, monochromatic infrared pyrometer itself are not damaged by thermal stress.Accurate measurement coverage: because it is a non-contact temperature measurement, so the 1C pyrometer does not need to be in higher or lower thermal stress, just work at all normal temperature or the standard allowed by the 1-color infrared pyrometer .In general, the detection range can be from negative tens of degrees to more than three thousand degrees.
Faster temperature measurement speed: faster response speed.If it receives infrared radiation from the overall target it can keep the temperature constant for a short period of time.High accuracy: the industrial infrared pyrometer is not easy to destroy the temperature of the block itself all over the same as the capacitance grid temperature measurement, so the accurate measurement is more accurate.High sensitivity: If the temperature of the block changes slightly, the kinetic energy of the radiation source will change greatly, which is easy to measure.Temperature detection of subtle temperature changes can be carried out.Measureable temperature throughout, and temperature detection of moving or rotating blocks.Application security and long service life.
Measuring range：250℃～1600℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s

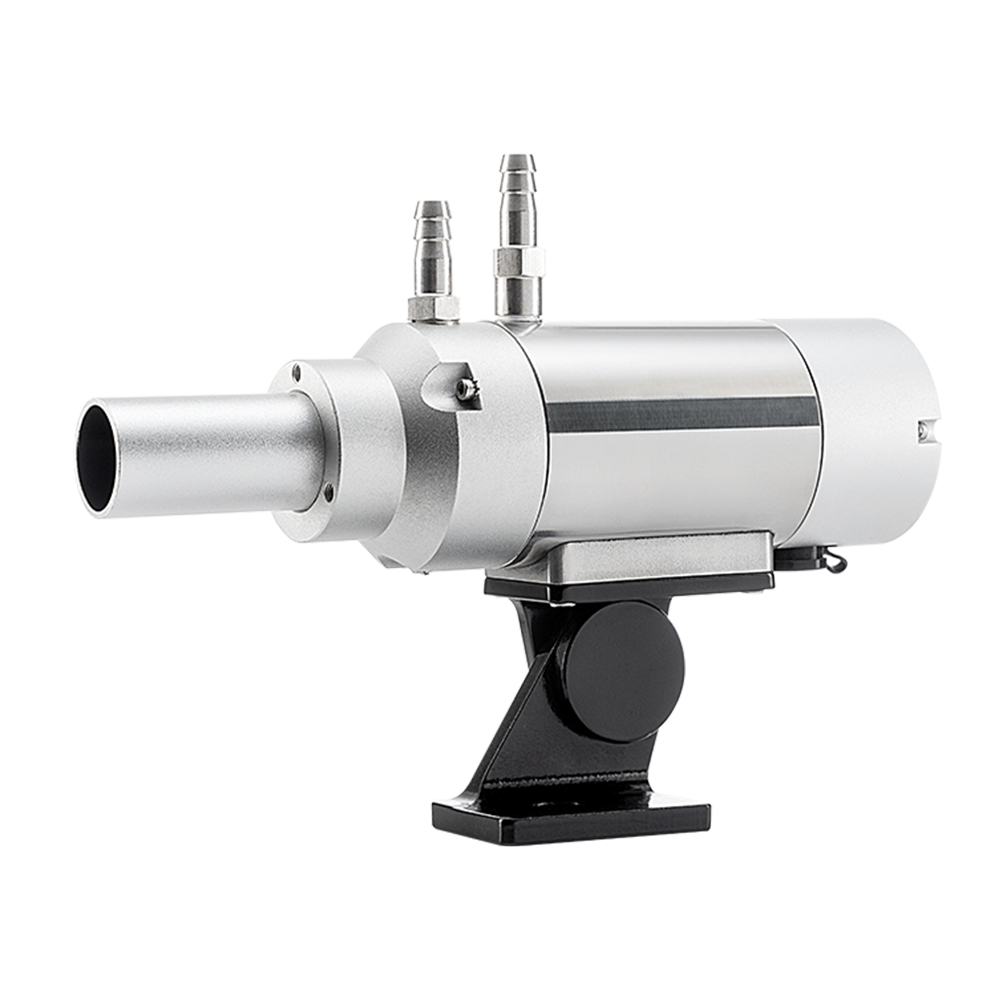

Model | MARS-G-2516 |
Measuring Range | 250℃～1600℃ |
Detector | InGaAs |
Wavelength | (1.45～2.1) μm |
Applications | High accuracy and High cost performance monochrome pyrometer applied to temperature measurement in the various industries.such as: inductioin heating,heat treatment,single crystal furnace,Polycrystalline furnace,Vacuum furnace,high temperature glass,also suitable for temperature measurement in a good environment. |
Distance coefficients | 100：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |

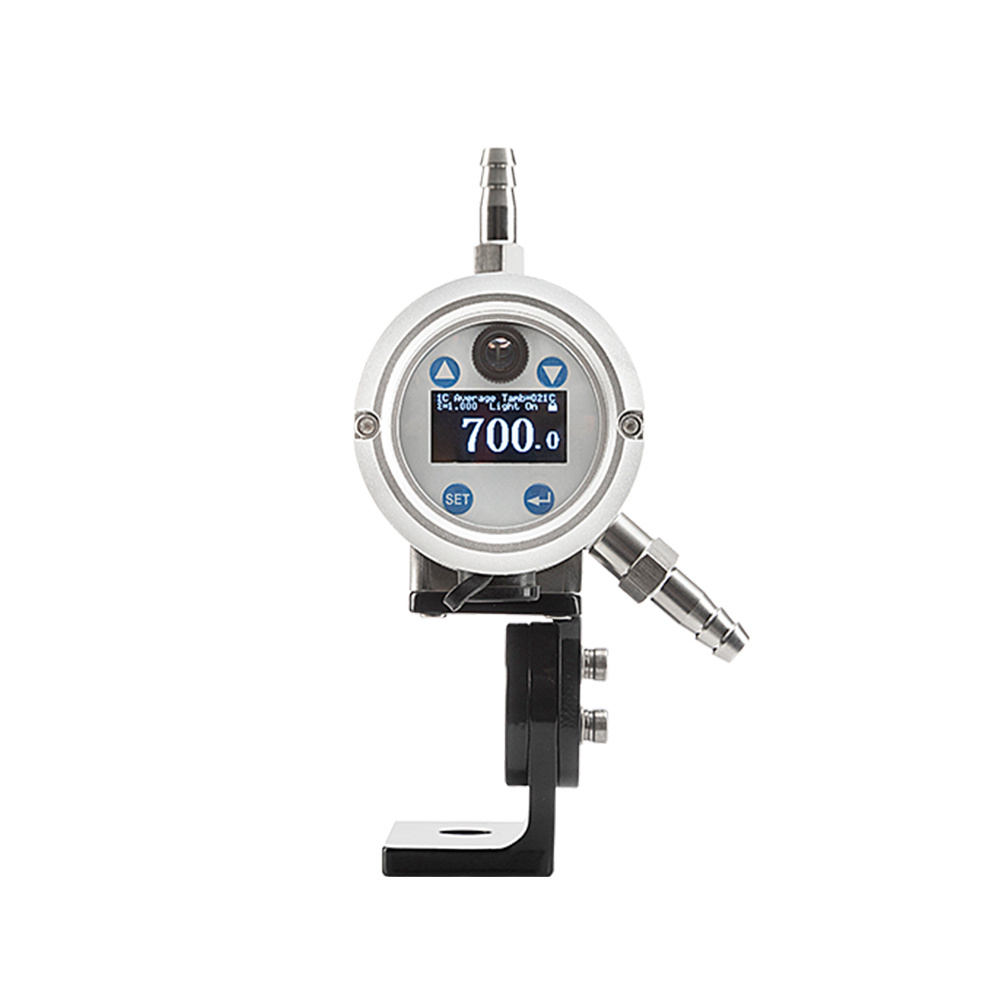

Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
