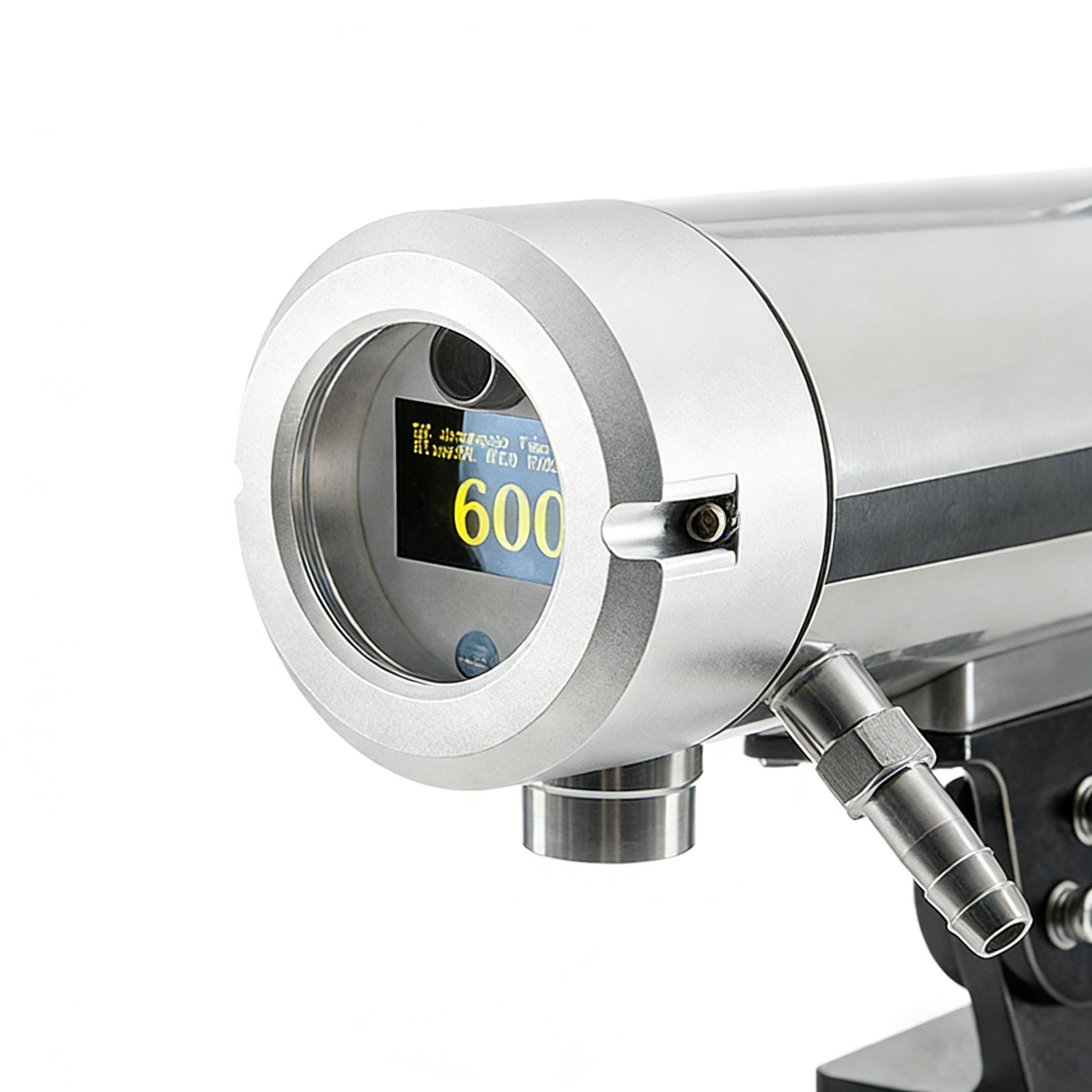

Portable non-contact Pyrometer Digital Infrared Instant-read

Portable non-contact Pyrometer Digital Infrared Instant-read

STRONG series is a high precision monochromatic pyrometer, with a solid shape, stainless steel movement, optional stainless steel protective cover, protection class IP65, with full environmental temperature compensation, suitable for various industrial occasions accurate temperature measurement.The monochromatic   Infrared Pyrometer has a temperature measurement accuracy of 0.5%, a repetition accuracy of 2℃, a response time of 5ms, and a resolution of 0.1℃.The industrial infrared pyrometer adopts adjustable focus lens, high brightness green LED light source or visual eyepiece aiming, and clearly displays the position and size of the measured target.The industrial pyrometer has industrial grade OLED screen for display interface, friendly man-machine interface.It has abundant peripheral interfaces: 2 independent analog output, 2 alarm output, 1 level output and 1 RS485 communication interface.Monochrome Infrared Thermometer is suitable for clean and open operating environment, measurement target size is relatively large, static measurement target, measurement target can completely fill the field of view of the thermometer, the ambient temperature is relatively not too high, relatively stable.The variation of emissivity, lens contamination and background radiation are related to the choice of wavelength.The temperature measurment infrared pyrometer can overcome the interference of transmission medium as much as possible by selecting the thermometer with special wavelength range.Such as water vapor, gases and other substances.Short-wave temperature measurement can minimize the influence of emissivity on the ratio infrared pyrometer.Long wavelength thermometers are usually used to measure targets below 200℃ or special media.

STRONG series fixed infrared pyrometer, using advanced hardware and software design, super wide dynamic range, high stability.At present, accuracy pyrometer on the market are mostly narrow band thermometers.Its temperature measurement principle is to determine the size of the temperature by the radiation energy occurring within a narrow wavelength range of the object.Thermometers measure the average temperature of an area, which is affected by emissivity, lens contamination, and background radiation.

    1-color pyrometer can be widely used in iron and steel production process, to monitor the temperature of the production process, for improving productivity and product quality to important.In the whole process of steel production, continuous temperature measurement and rack adjustment can ensure product quality and production line normal use, and can avoid unexpected shutdown.Whether the temperature of the production process is within the range required by the process;Whether the heating furnace temperature is too low or too high;Whether the mill needs to be adjusted or to what extent it needs to be cooled.In some production processes, such as high-speed rolling and vibration of fine rod or wire products is very difficult to measure the temperature, high performance infrared 2-color pyrometer can solve this problem.When the target deviates from the field of view or is partially blocked (dust, steam, obstacles, etc.), the 2-color infrared pyrometer can still accurately measure the temperature.temperature measurment infrared pyrometer is also widely used in: hot rolling, rod and wire rolling, hot stove, metal production, metallurgical industry, construction field, glass industry, new materials industrial temperature measurement, solid waste treatment and other applications of industrial temperature measurement occasions.

Features

Measuring range：200℃～1200℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s

Technical Parameters
