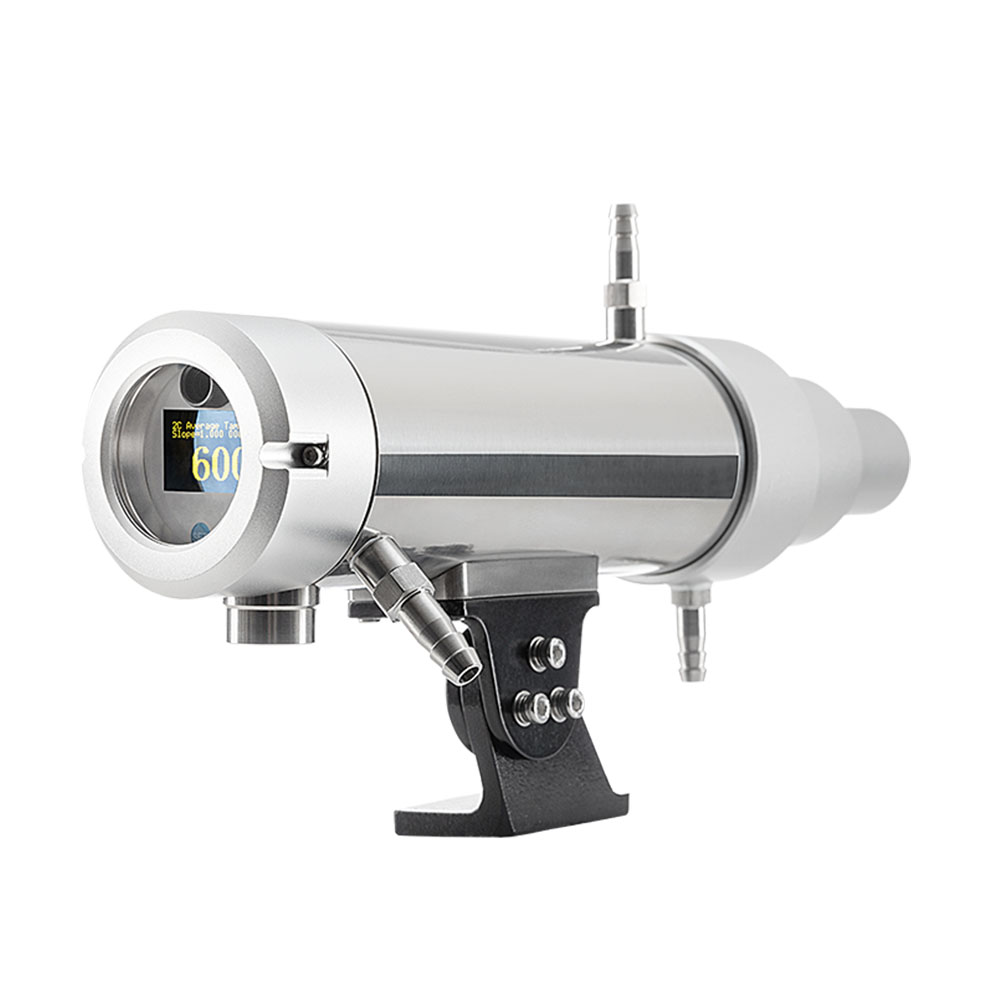

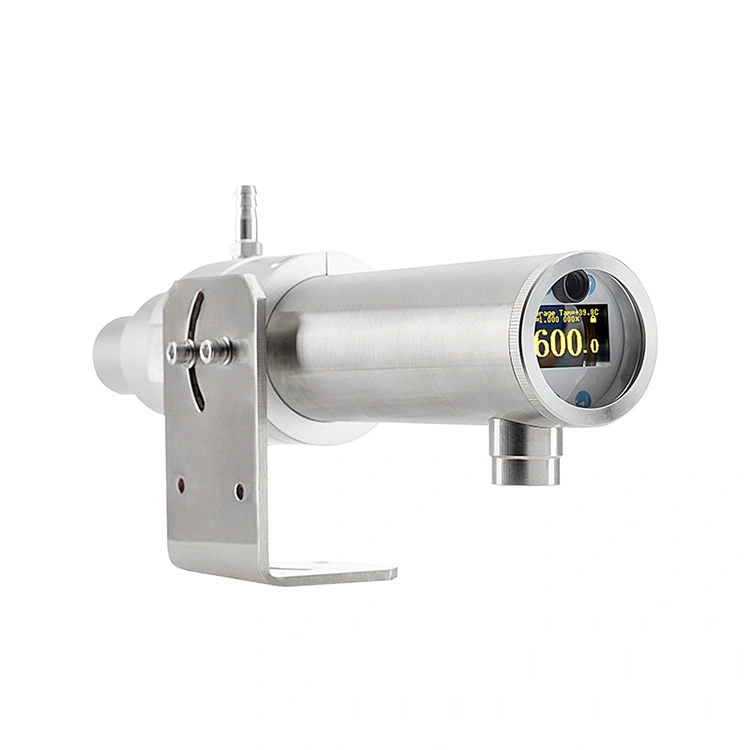

With a solid shape structure, 304 stainless steel movement, 304 stainless steel protection jacket, when the ambient temperature is too high, there is water vapor in the working environment, ash layer, optional stainless steel protection jacket, with water cooling, blowing function.The sealing parts are made of high temperature resistant rubber, IP65 protection grade, suitable for various industrial occasions. This series infrared pyrometet adopts manual adjustable focal length, achromatic lens and high reliability circuit design. Software and hardware design, suitable for one million times of signal processing, can meet the user of the instrument precision, repeatability, and other aspects of the requirements.
STRONG series industrial infrared pyrometer use cost-effective optical systems and photoelectric sensors.The design pursues lightweight and low cost. To provide users with practical measurement function. In the range of -40℃ ~ 3300℃ to meet different requirements. The temperature of an object is determined by the sum of the narrow-band radiation energy emitted by the object.Advanced hardware and software design, wide dynamic range, high stability. Using adjustable focus lens, high brightness green LED light source or visual eyepiece aiming, clearly display the position and size of the measured target.
nfrared temperature measurement technology is playing an important role in product quality control and monitoring, equipment online fault diagnosis, safety protection and energy saving.In the past two decades, non-contact infrared pyrometer technology has developed rapidly in technology, improved performance, expanded scope of application, and increased market share year by year. Compared with contact temperature measurement method, infrared temperature measurement has the advantages of quick response time, non-contact, safe use and long service life. This low-temperature 1-color pyrometer can be widely used in metallurgical industry (wire, hot rolled plate, forging) and forging industry, heat treatment, induction heating, monocrystalline silicon, polysilicon and various industrial temperature measurement occasions.
Measuring range：200℃～1200℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | STRONG-G-2012 |
Measuring Range | 200℃～1200℃ |
Detector | InGaAs |
Wavelength | （1.45～2.1）μm |
Applications | High accuracy and High cost performance monochrome pyrometer applied to temperature measurement in the various industries.such as: inductioin heating,heat treatment, Galvanized wire ,also suitable for temperature measurement in a good environment. |
Distance coefficients | 100：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
