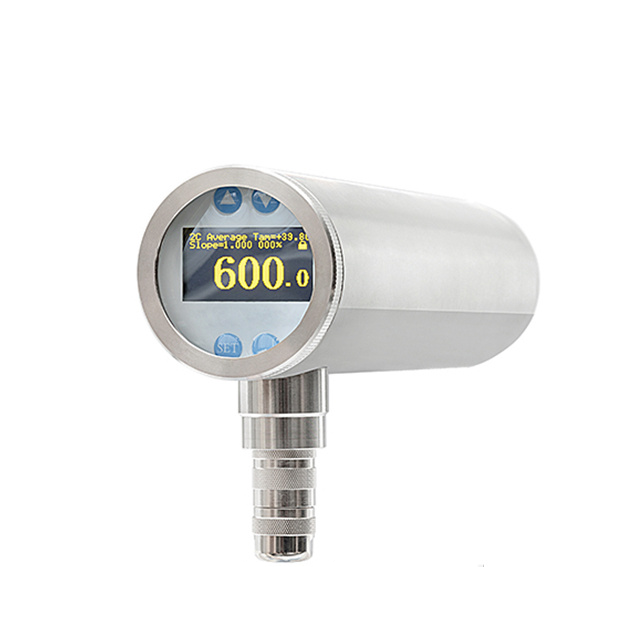

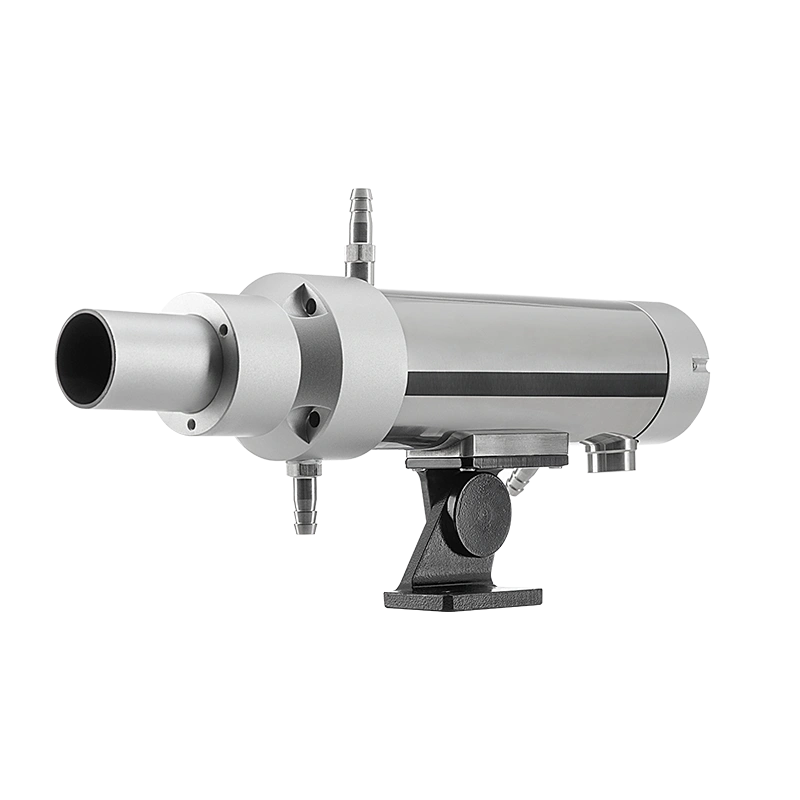

This series accuracy pyrometer have the function of switching between one-color and two-color modes and is rarely affected by emissivity of the measured object, and displayed temperature is basically unchanged even if the target signal decays 95%. This 2-color pyrometer use adjustable focus lens, with high-brightness green LED light source or visual eyepiece aiming, and clearly display the position and size of the measured target. This series infrared thermometer use industrial-grade OLED screen as the display interface, which is user-friendly.
Measuring range：700℃～2500℃
Detector：Si/Si（Laminated silicon）
Distance coefficients：60：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | STRONG-SR-7025 |
Measuring Range | 600℃～1800℃ |
Detector | Si/Si |
One-color mode Wavelength | 1.08μm |
Two-color mode Wavelength | Wavelength1：（0.7～1.08）μm Wavelength 2：1.08μm |
Applications | Hot rolled steel, wire rod, metal forging, casting, induction heating, melting glass, cement kiln, semiconductor, vacuum furnace etc. |
Distance coefficients | 60：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
One-color mode: Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Two-color mode: Calibration coefficient | 0.850～1.150, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
Display mode | Industrial-grade self-luminous OLED display screen |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
