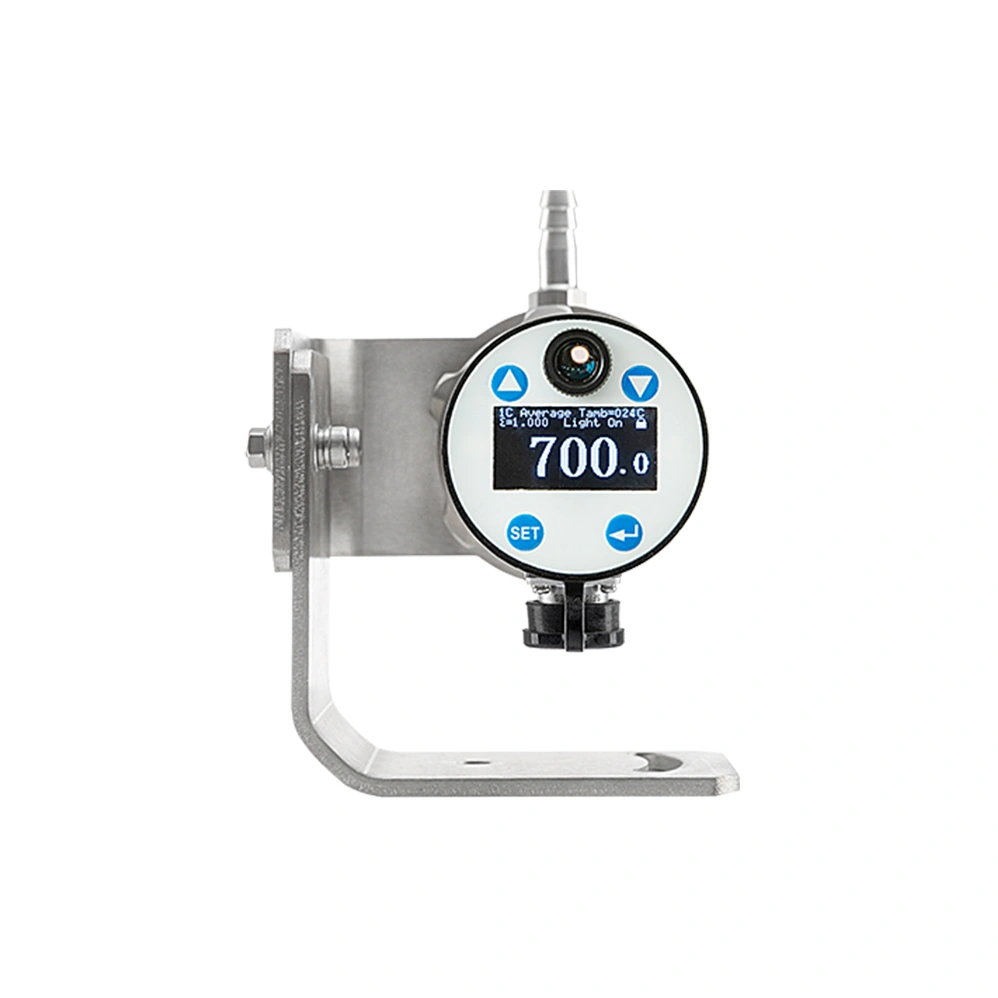

The MARS-S-7030 industrial pyrometer has stainless steel solid core movement, heat and corrosion resistance. In addition, cooling air purging protective sleeve can be selected to prevent dust, can withstand high temperature environment. If temperature and pression of the measured object environment is high,we can also choose the MARS-S-7030 infrared pyrometer with the special installation setting which can withstand high temperature and high pressure, and designed for BFS furnace system.
Features of Mars series Infrared pyrometer Temperature range covering 200℃～3000℃. |
|
Features of MARS-S-7030
Measuring range：700℃～3000℃
Detector：Si(silicone photocell)
Distance coefficients：200：1
Measuring Distance：Standard focus distance0.35m to infinity adjustable，near focus distance 0.15m to 0.5m adjustable
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | MARS-S-7030 |
Measuring Range | 700℃～3000℃ |
Detector | Si(silicone photocell) |
Wavelength | (0.85～1.1) μm |
Applications | Induction heating、heat treatment、Monocrystalline、 Polycrystalline、Vacume furnace、High temperature furnace |
Distance coefficients | 200：1 |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
One-color coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |
Output | Multiple annalog output 16bit （4mA～20mA，0mA～20mA，0V～5V，0V～10V option）Resolution 0.1℃，Current loop output maximum load 600Ω, Voltage output allowed current 10mA Alarm output：Upper limit、Lower limit alarm，with photocouple relay has unlimited service life，On resistance≤1Ω，maximum allowed voltage: AC42V or DC60V，Maximum allowed current:100mA，Response time: 2ms. RS485 output，capable parameter modification, data recording and query function |
Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Built-in visible high brightness green light or eyepiece aiming |
IP Rating | IP65 |
Applications
The measured object has a large measuring area (fully capable of filling the target field of view), a flat surface (without bending), a measuring direction less than 30 degrees, a stable physical and chemical state on the surface of the measured object (not in the process of oxidation, gasification or liquefaction), less dust in the optical channel, and no obstruction or attenuation.
MARS-S Technical parameter
Model | MARS-S-6016 | MARS-S-6022 | MARS-S-7026 | MARS-S-7030 |
Measuring range（℃） | 600～1600 | 600～2200 | 700～2600 | 700～3000 |
Detector | Si(silicone photocell) | |||
Working wavelength | （0.85～1.1）μm | |||
Mostly application | Heat treatment、Metal forging、casting、 Induction heating、Glass、Semiconductor | Induction heating、heat treatment、Monocrystalline、 Polycrystalline、Vacume furnace、High temperature furnace | ||
Distance coefficient | 100：1 | 200：1 | ||
Measuring distance | Standard focus distance0.35m to infinity adjustable，near focus distance 0.15m to 0.5m adjustable | |||
Measuring accuracy | ±0.5%T℃（T as temperature measuring value） | |||
Temperature resolution | 0.1℃ | |||
Repeat accuracy | ±2℃ | |||
One-color coefficient | 0.100～1.000，Adjustable in 0.001 increments | |||
Repponse time | 5ms～99.99s，capable adjustable | |||
Singal processing | Peak value、valley value、Average value，ambient temperature too high and too low alarm，power down protection and others function etc. | |||
Output | Multiple annalog output 16bit （4mA～20mA，0mA～20mA，0V～5V，0V～10V option） Resolution 0.1℃，Current loop output maximum load 600Ω, Voltage output allowed current 10mA | |||
Alarm output：Upper limit、Lower limit alarm，with photocouple relay has unlimited service life，On resistance≤1Ω，maximum allowed voltage: AC42V or DC60V，Maximum allowed current:100mA，Response time: 2ms | ||||
RS485 output，capable parameter modification, data recording and query function | ||||
Display mode | With self-illumination industrial gread OLED display screen | |||
Power supply | DC（20～30）V，power consumption：5W（24V@200mA），With over voltage, over current, short circuit protection，With Built-in EMI filter、can resist 2500VDCpalus group interferance. | |||
Ambient temperature compensation | Built-in ambient temperature compensation, almost unaffected by ambient temperature changes | |||
Aiming mode | Built-in visible high brightness green light or eyepiece aiming | |||
Interface | With fully sealed plug | |||
Service environment | -20℃～+60℃，without water cooling；-20℃～+200℃，with water cooling | |||
IP rate | IP65 | |||
