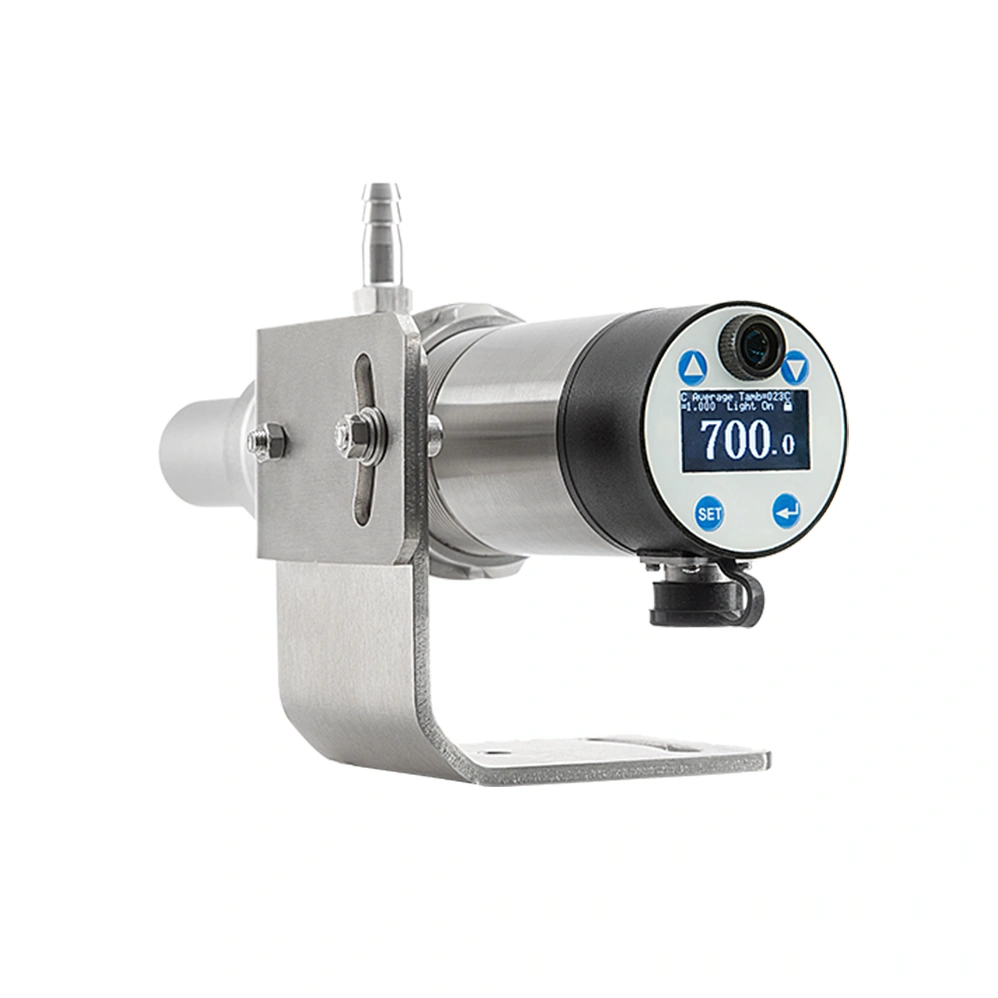

It has a strong shape, 304 stainless steel movement (movement diameter is only 50mm), optional with purge and cooling function of 304 stainless steel protective water jacket.It use the manual adjustable focal lens, achromatic lens, high reliability circuit design (low temperature drift, design of fully digital measurement, high integration SOC chip application, visualize, OLED) interface and software design (ambient temperature compensation and real-time signal processing, abnormal signal processing, all kinds of application environment of software code optimization).These special designs allow the MARS range of one color pyrometer to be used for a variety of demanding industrial applications and precise temperature controls.
The MARS series of one color pyrometer measure the temperature of an object by receiving the sum of the energy it emits in a narrow band.It adopts advanced software and hardware design, with super wide dynamic range and high stability.

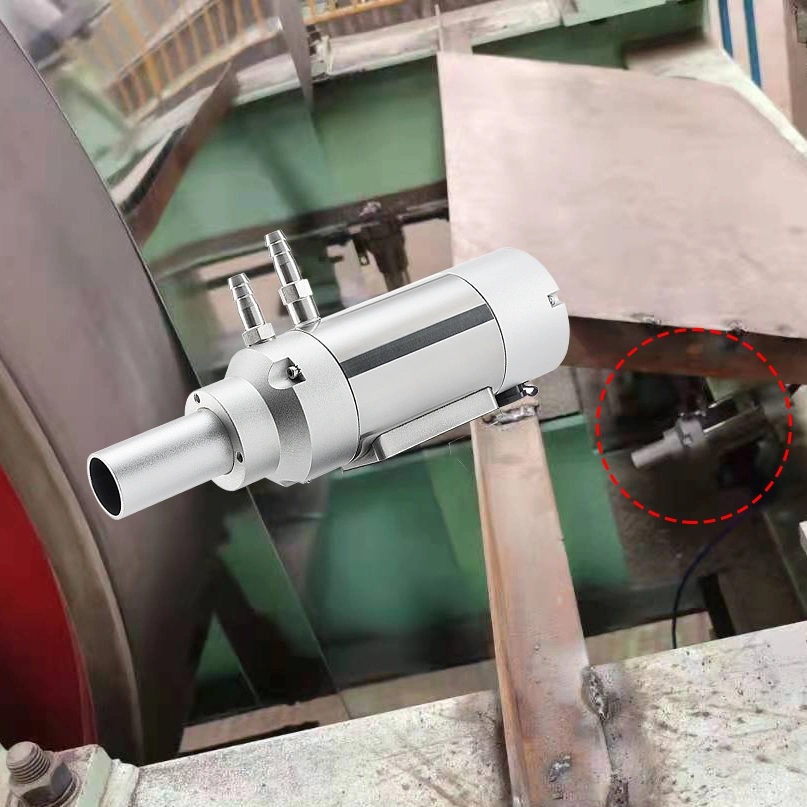

It can be widely used in forging industry, heat treatment, induction heating, vacuum furnace, high temperature furnace, monocrystalline silicon, polycrystalline silicon and other industrial temperature measurement.
Measuring range：700℃～2500℃
Detector：Si
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Model | MARS-S-7025 |
Measuring Range | 700℃～2500℃ |
Detector | Si |
Wavelength | (0.85～1.1) μm |
Applications | High accuracy and High cost performance monochrome pyrometer applied to temperature measurement in the various industries.such as: inductioin heating,heat treatment,single crystal furnace,Polycrystalline furnace,Vacuum furnace,high temperature glass,also suitable for temperature measurement in a good environment. |
Distance coefficients | 100：1 |
Focal length | Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m |
Accuracy | ±0.5%T℃（T is measured temperature） |
Resolution | 0.1℃ |
Repeat Accuracy | ±2℃ |
Calibration coefficient | 0.100～1.000, Adjustable in 0.001 increments |
Response time | Fasted: 5ms，adjustable in 5ms-99.99s |

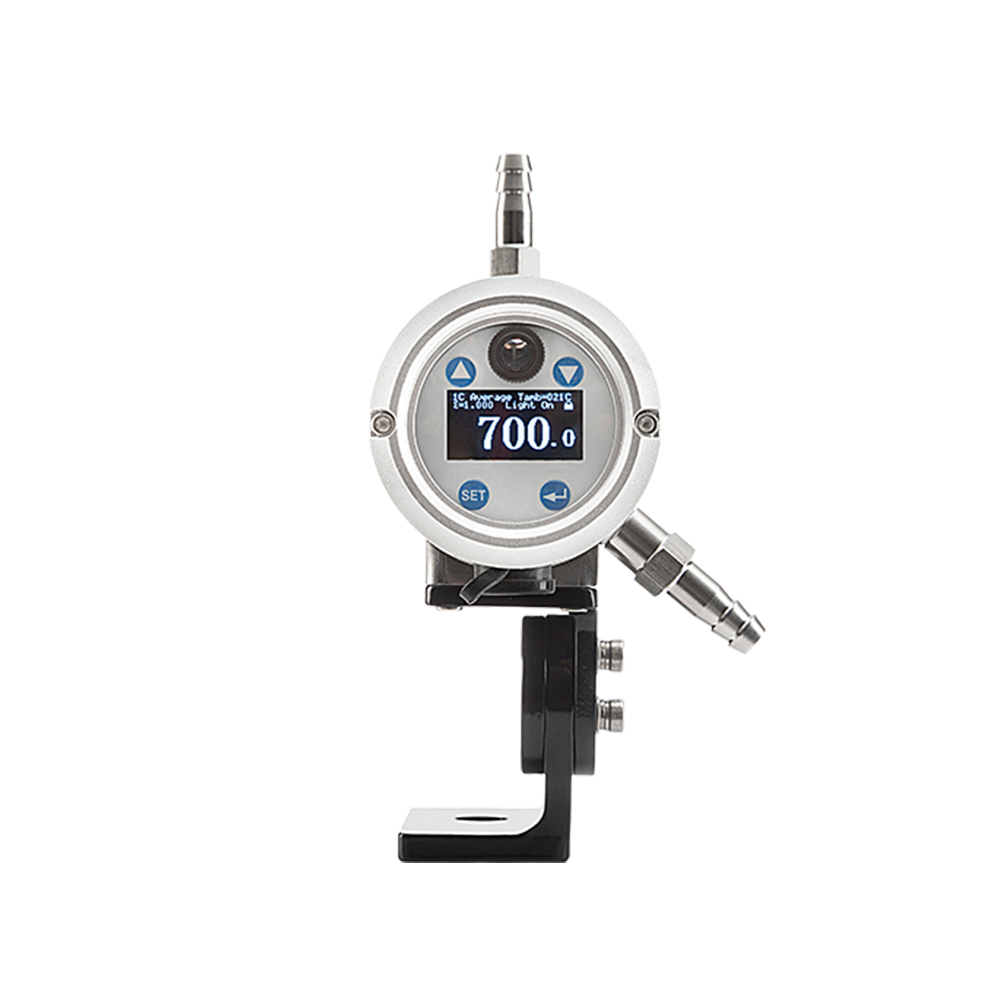

Display mode | Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming |
Aiming method | Visual green spot (default) or eyepiece aiming, alternative |
IP Rating | IP65 |
