Model No.: STRONG-S-6020
Support Customization: Oem, Odm, Obm
Place Of Origin: China
Warranty Period: 2 Years
Packaging: carton/wooden case
Transportation: Ocean,Air,Land,Express,Others
Port: Shanghai Port,Ningbo Port
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW,CFR,FCA

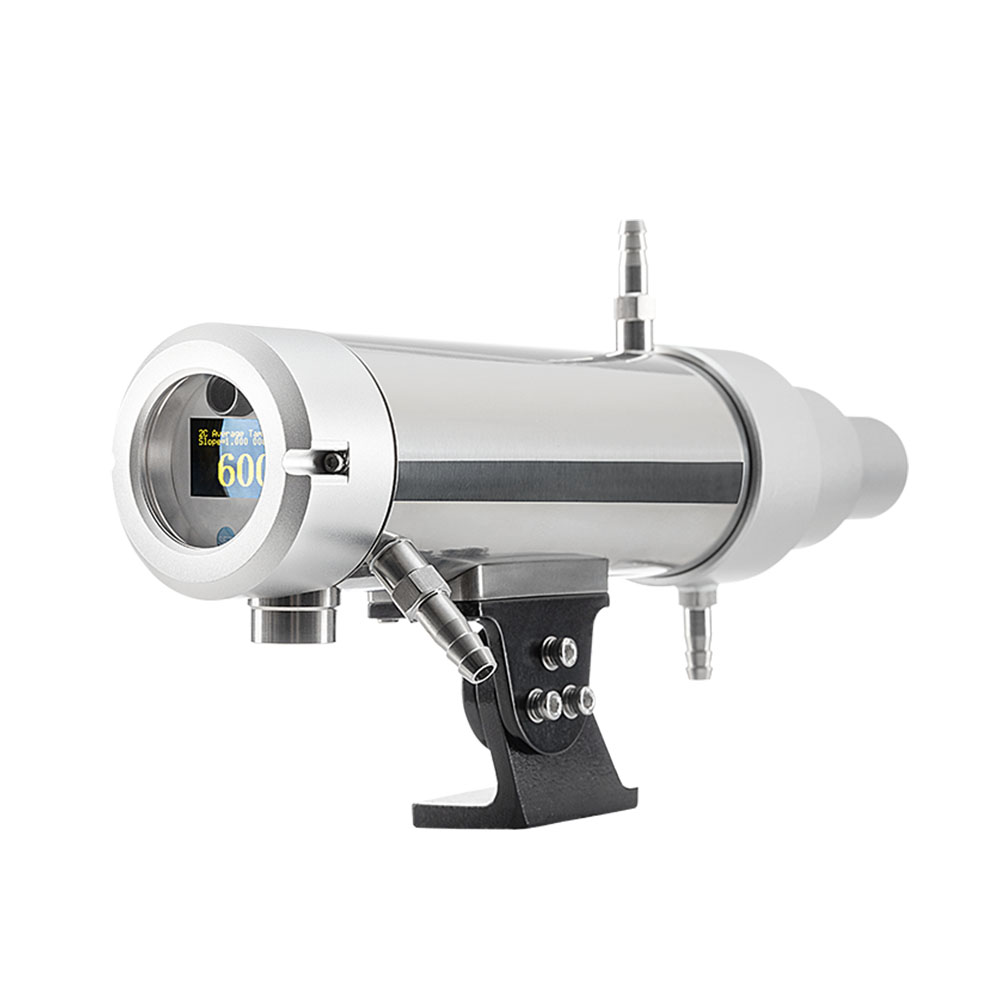

STRONG Series one color pyrometer is a series high performance and intelligent one-color Infrared Pyrometer. It has solid firm, 304 stainless steel inter-machine, 304 stainless steel protection jacket with optional air purge and water cooling functions. It uses the manual adjustable focal length, achromatic lens, high reliability circuit design (low temperature drift, full digital measurement design, high integration SOC chip application, visualize OLED operation interface) and software design (ambient temperature compensation, real-time signal processing, abnormal signal processing, software code optimization in all kinds of application environment ).These special designs enable the STRONG series of one-color pyrometers to meet the use in a variety of harsh industrial field and precise temperature control requirements.
STRONG series one color pyrometer determine the object temperature by receiving the sum of the narrow-band radiation energy emitted by the object. It uses advanced software and hardware design, with ultra-wide dynamic range and high stability.

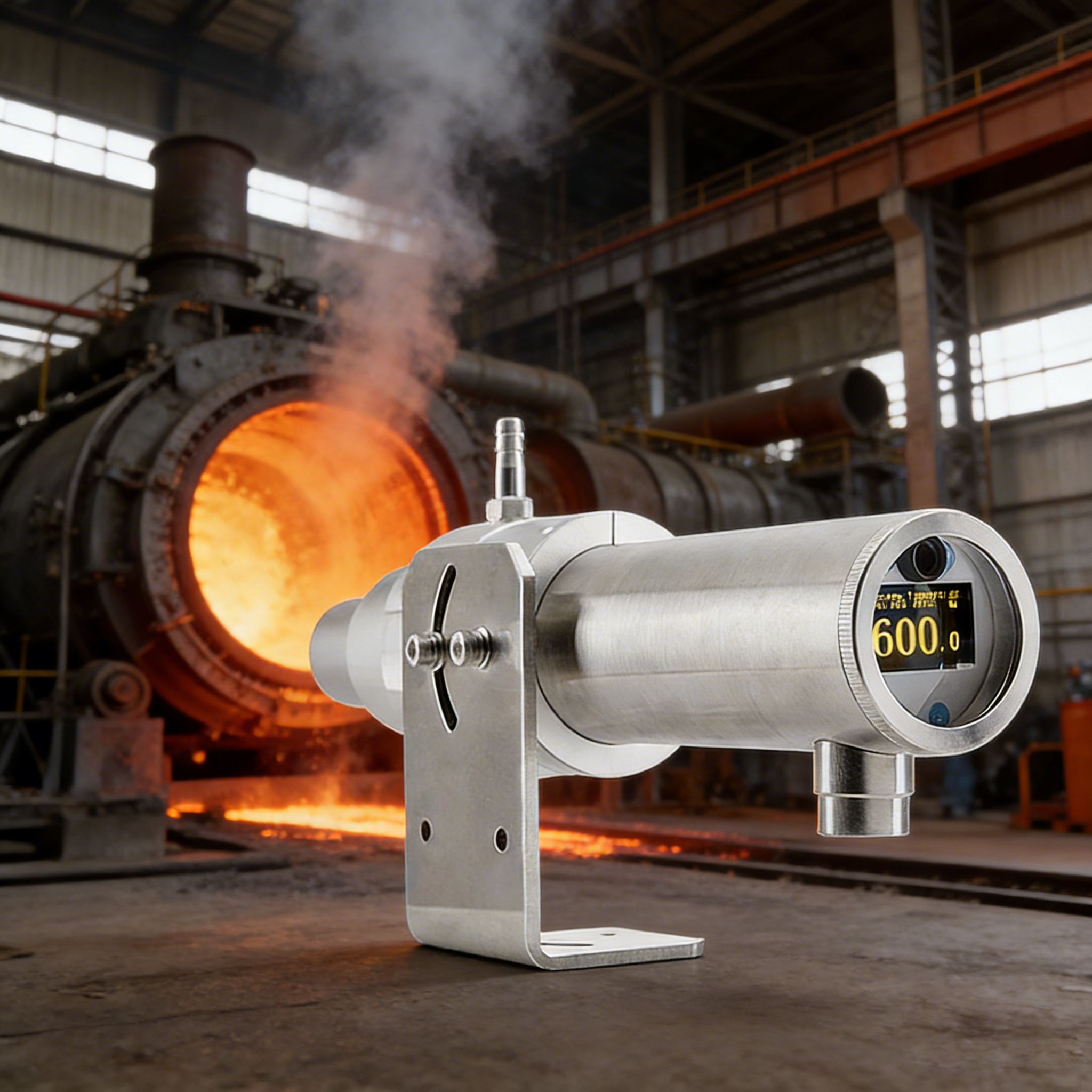

It can be widely used in metallurgical industry (wire rod, hot rolled plate, forging) and forging industry, heat treatment, induction heating, single crystal silicon, polycrystalline silicon and various occasions of industrial temperature measurement.
Measuring range：600℃～2000℃
Detector：Si
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
High accuracy, highly stable One Color Infrared Pyrometer,applied to induction heating, heat treatment, monocrystalline silicon furnace, polysilicon furnace, vacuum furnace, melting glass, forging and other industrial temperature measurement. Standard：0.35m adjustable to infinity， Near focus distance：0.2m～0.5m
Model STRONG-S-6020
Measuring Range
600℃～2000℃
Detector
Si
Wavelength
(0.85～1.1）μm
Applications Distance coefficients 100：1
Focal length
Accuracy
±0.5%T℃（T is measured temperature）
Resolution
0.1℃
Repeat Accuracy
±2℃
Calibration coefficient
0.100～1.000, Adjustable in 0.001 increments
Response time
Fasted: 5ms，adjustable in 5ms-99.99s
Display mode
Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65
Product Categories : High Temperature Infrared Pyrometer > High-temperature 1-color Pyrometer
