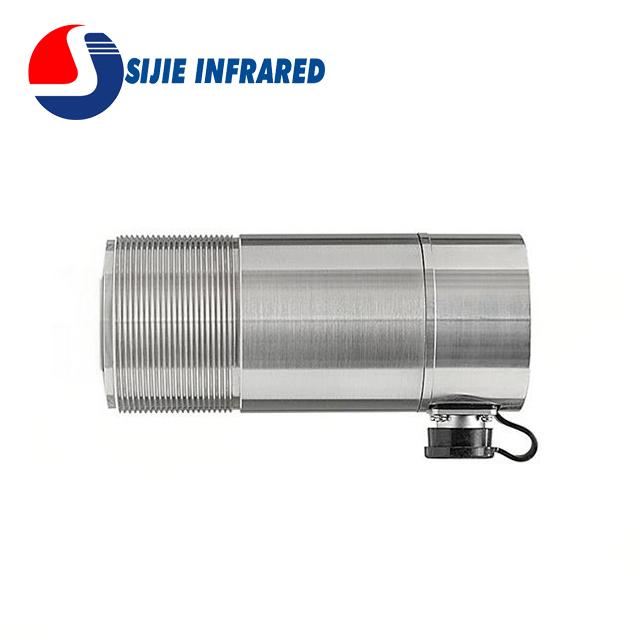

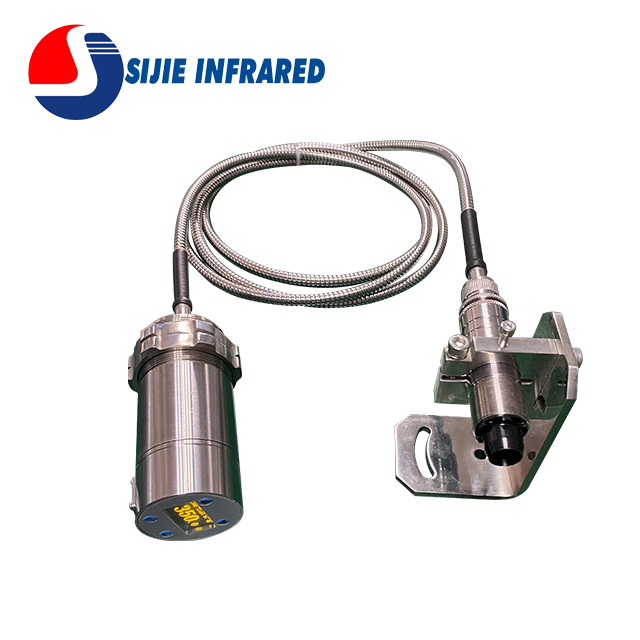

High Temperature One Color Fiber Optic Pyrometer

Measuring range(degC)

600 ~1600

600~2000

700~2500

700~3000

Detector

Si(silicone photocell)

Working wavelength

(0.85 ~1. 1) μm

Mostly application

Heat treatment, Metal forging, Casting, Induction heating, Glass, Semiconductor

Induction heating, heat treatment, Monocrystalline,  Polycrystalline, Vacume furnace, High temperature furnace

Distance coefficient

100：1

200：1

Measuring distance

Manual adjustable focus lens, standard focus distance 0.15m to 10m.

Measuring accuracy

±0.5%T  (T as temperature measuring value)

Temperature resolution

0. 1 degC

Repeat accuracy

±0.1T (T as temperature measuring value)

One-color coefficient

0. 100~1.000 ，Adjustable in 0.001 increments

Response time

5ms~99.99s, capable adjustable

Signal processing

Peak value, valley value, Average value, ambient temperature too high and too low alarm, power down protection and others function etc.

Output

Multiple analog output 16bit (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V option) Resolution 0. 1 degC, Current loop output maximum load 600Ω, Voltage output allowed current 10mA

Alarm output: Upper limit, Lower limit alarm, with optocoupler relay has unlimited service life. On resistance≤ 1Ω, maximum allowed voltage: AC42V or DC60V, Maximum allowed current:100mA, response time:2ms.

RS485 output, capable parameter modification, data recording and query function

Display mode

With self-illumination industrial grade OLED display screen

Power supply

DC (20~30) V, power consumption：5W (24V@200mA). With over voltage, over current, short circuit protection. With Built-in EMI filter, can resist 2500VDCpalus group interference.

Ambient temperature compensation

Built-in ambient temperature compensation, almost unaffected by ambient temperature changes

Aiming mode

Red laser or green laser aiming

Interface

With fully sealed plug

Service Environment

Without water cooling: -20 degC ~+70 degC.

With water cooling-20 degC ~+200 degC, (cooling water pressure: 0.2MPa, flow rate:  2L/min)

Lens and optical fiber: -20 degC～+250 degC (purging pressure is 0.1MPa, flow rate is 6L/min).

IP rate

IP65

Measuring range(degC)

300~1400

350~1800

300~2500

200~1200

Detector

InGaAs(Indium gallium arsenic)

InGaAs (Extended Indium gallium arsenic)

Working wavelength

( 1.45~1.7) μm

( 1.45~2. 1) um

Mostly application

Heat treatment, Galvanized    wire, Nonferrous metal           processing, annealing furnace

Induction heating, heat          treatment, monocrystalline, polycrystalline, vacuum        furnace, high temperature     furnace

Nonferrous Metal Processing,

Induction Heating, Coating

Distance coefficient

100:1

200：1

100：1

Measuring coefficient

Manual adjustable focus lens, standard focus distance 0.15m to 10m.

Measuring accuracy

±0.5%T  (T as temperature measuring value)

Temperature resolution

0. 1 degC

Repeat accuracy

±0.1%T (T as temperature measuring value)

One-color coeffient

0. 100~1.000, Adjustable in 0.001 increments

Response time

5ms~99.99s,capable adjustable, Need faster speed can be customized

Signal processing

Peak value, valley value, Average value, ambient temperature too high and too low alarm, power down protection and others function etc.

Output

Multiple analog output 16bit (4mA~20mA, 0mA~20mA, 0V~5V, 0V ~10V option),  Resolution 0. 1 degC, Current loop output maximum load 600Ω, Voltage output allowed current 10mA

Alarm output: Upper limit, Lower limit alarm,, with optocoupler relay has unlimited service life,, On resistance≤ 1Ω, maximum allowed voltage: AC42V or DC60V, Maximum allowed current: 100mA, Response time: 2ms

RS485 output, capable parameter modification, data recording and query function

Display mode

With self-illumination industrial grade OLED display screen

Power supply

DC (20~30) V, power consumption: 5W (24V@200mA), With over voltage, over current, short circuit protection, With Built-in EMI filter, can resist 2500VDCpalus group interference.

Ambient temperature   compensation

Built-in ambient temperature compensation, almost unaffected by ambient temperature changes.

Aiming mode

Red laser or green laser aiming

Interface

With fully sealed plug

Service environment

Without water cooling: -20 degC ~+70 degC.

With water cooling-20 degC ~+200 degC (cooling water pressure: 0.2MPa, flow rate:  2L/min)

Lens and optical fiber: -20 degC～+250degC (purging pressure is 0.1MPa, flow rate is 6L/min).

IP rate

IP65
